LC121S1-A1MT - SVGA TFT LCD

📥 Download Datasheet

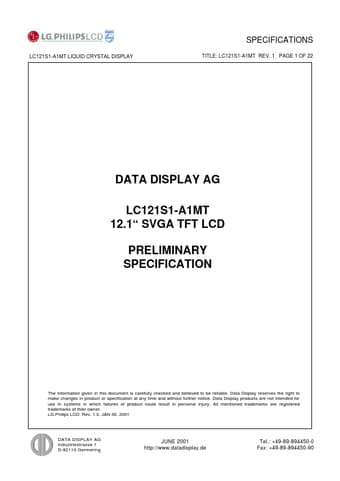

LC121S1-A1MT Datasheet Preview — Preview of LC121S1-A1MT PDF

Datasheet Details

Part number	LC121S1-A1MT
Manufacturer	LG
File Size	421.02 KB
Description	SVGA TFT LCD
Datasheet	LC121S1-A1MT-LG.pdf

LC121S1-A1MT Product details

Description

SPECIFICATIONS TITLE: LC121S1-A1MT REV.1 PAGE 2 OF 22 The LC121S1-A1MT is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent Lamp (CCFL) backlight system.The matrix employs a-Si Thin Film Transistor as the active element.It is a transflective type(1) display operating in the normally white mode.This TFT-LCD has 12.1 inches diagonally measured active display area with SVGA resolution (600 vertical by 800 horizontal pixel array).Each pixel is divided into

Features

Active screen size Outline dimensions Pixel pitch Pixel format Color depth Luminance,White Power Consumption Weight Display operating mode Surface treatments 12.1 inches (30.7 cm) diagonal 261 (H) × 199 (V) × 6.5 (D) mm (Typ. ) 0.1025 mm × RGB x 0.3075 mm 800 horiz. by 600 vert. Pixels (RGB stripe arrangement) 6-bit, about 262, 144 colors 90 cd/m2 (Typ. ) Total 4.6 Watt (Typ. ) (1 Watt at circuit logic only) 420 g (Typ. ) Transflective mode, Normally White Hard coating (3 H) No Anti-glare treatmen.
