LC150X02-A4 - TFT LCD Module

📥 Download Datasheet

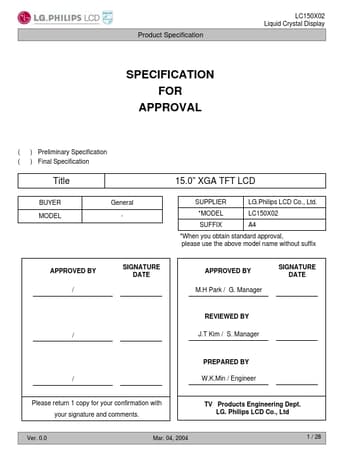

LC150X02-A4 Datasheet Preview — Preview of LC150X02-A4 PDF

Datasheet Details

Part number	LC150X02-A4
Manufacturer	LG
File Size	372.43 KB
Description	TFT LCD Module
Datasheet	LC150X02-A4_LG.pdf

LC150X02-A4 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 6 9 13 14 15 16 17 21 24 25 25 25 26 26 26 27 POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS Ver.0.0 Mar.04, 2004 2 / 28 Datasheet pdf - http://www.D

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 0.0 15.0 inches(38.016cm) diagonal (Aspect ratio 4:3) 332.8¡¿ 262.8¡¿ 18.0 (H ¡¿ V ¡¿ T) 0.297mm x 0.297mm 1024 horiz. By 768 vert. Pixels RGB strip arrangement 16M colors ( 6-bit with FRC ) 450 cd/m2 (Center 1 points Typ. ) R/L 130(Typ. ), U/D 100(Typ) Total 16.99 Watt(Typ. ) (1.63 Watt@VLCD, 15.36 Watt@450cd/[Lamp=6.
