LMP2165JZF - 20V P-Channel Enhancement MOSFET

Name: LMP2165JZF
SKU: LMP2165JZF-1583447

📥 Download Datasheet

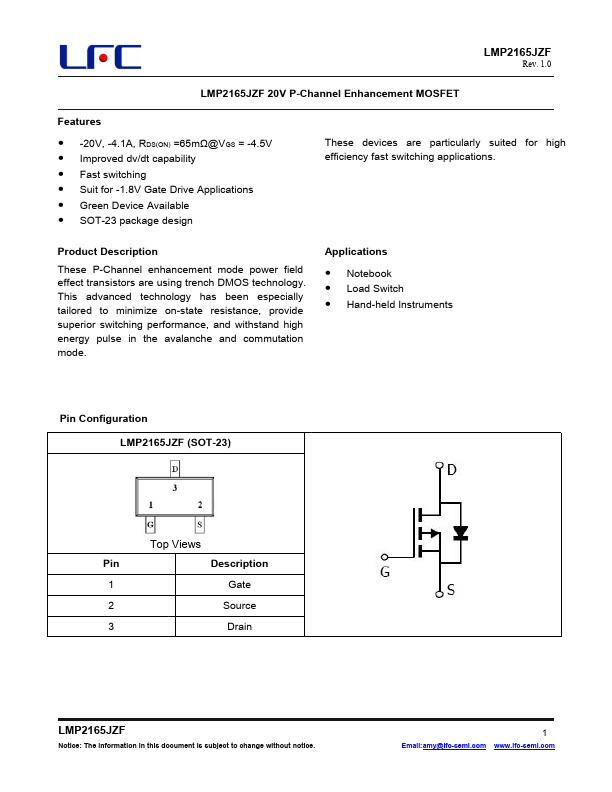

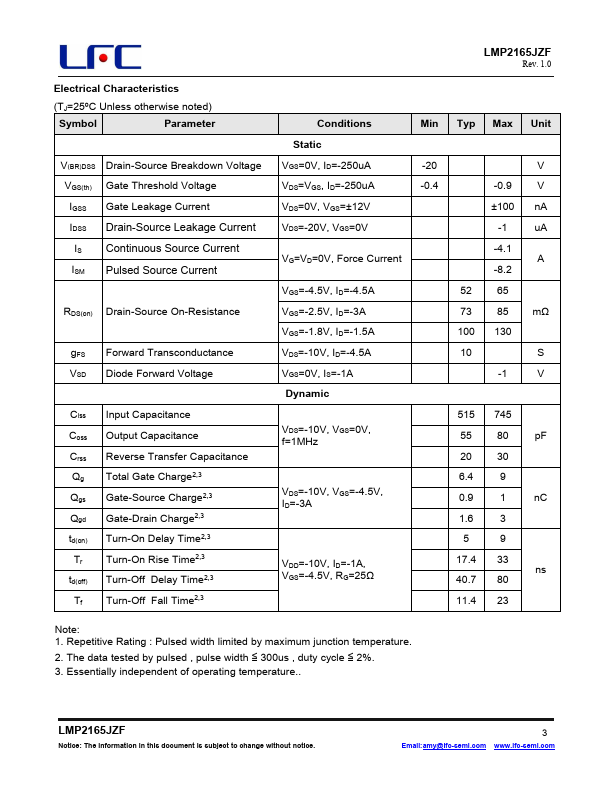

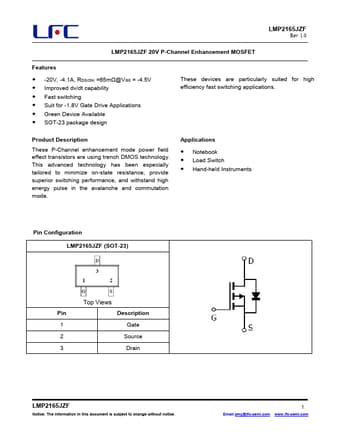

LMP2165JZF Datasheet Preview — Preview of LMP2165JZF PDF

Datasheet Details

Part number	LMP2165JZF
Manufacturer	LFC semi
File Size	321.73 KB
Description	20V P-Channel Enhancement MOSFET
Datasheet	LMP2165JZF-LFCsemi.pdf

LMP2165JZF Product details

Description

These P-Channel enhancement mode power field effect transistors are using trench DMOS technology. Notebook Load Switch Hand-held Instruments Pin Configuration LMP2165JZF (SOT-23) Top Views Pin Description 1 Gate 2 Source 3 Drain LMP2165JZF Notice: The informa

Features

-20V, -4.1A, RDS(ON) =65mΩ@VGS = -4.5V.
Improved dv/dt capability.
Fast switching.
Suit for -1.8V Gate Drive.
