LMP1073KTFF - 20V P-Channel Enhancement Mode MOSFET

LMP1073KTFF Datasheet Preview — Preview of LMP1073KTFF PDF

Datasheet Details

Part number	LMP1073KTFF
Manufacturer	LFC semi
File Size	620.51 KB
Description	20V P-Channel Enhancement Mode MOSFET
Datasheet	LMP1073KTFF-LFCsemi.pdf

LMP1073KTFF Product details

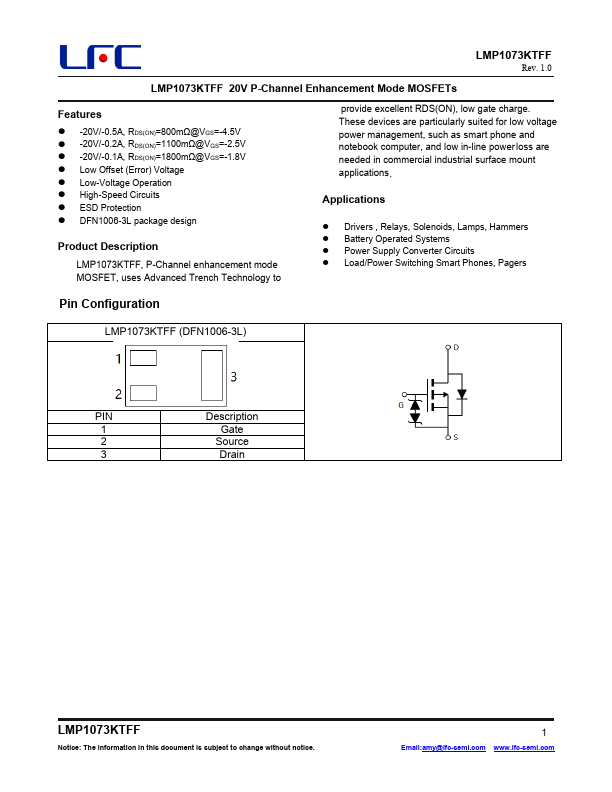

Description

LMP1073KTFF, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.These devices are particularly suited for low voltage power management, such as smart phone and notebook computer, and low in-line power loss are needed in commercial industrial surface mount applications.Applications Drivers , Relays, Solenoids, Lamps, Hammers Battery Operated Systems Power Supply Converter Circuits Load/Power Switching Smart P

Features

-20V/-0.5A, RDS(ON)=800mΩ@VGS=-4.5V.
-20V/-0.2A, RDS(ON)=1100mΩ@VGS=-2.5V.
-20V/-0.1A, RDS(ON)=1800mΩ@VGS=-1.8V.
Low Offset (Error) Voltage.
Low-Voltage Operation.
High-Speed Circuits.
ESD Protection.
DFN1006-3L package design Product.
