LMN1912 - 20V N-Channel Enhancement Mode MOSFET

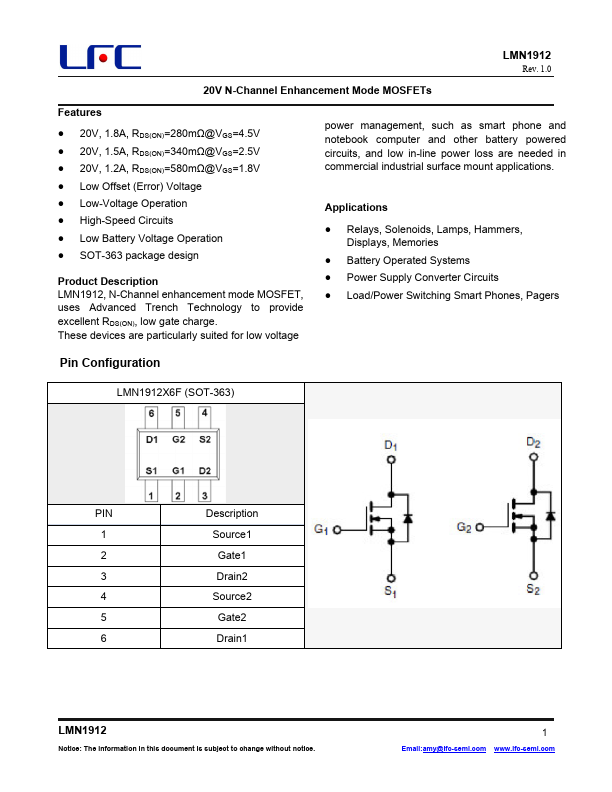

The LMN1912 by LFC semi is a 20V N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

LMN1912 20V N-Channel Enhancement Mode MOSFET by LFC semi - Datasheet Preview — Official preview page of the **LMN1912** 20V N-Channel Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number	LMN1912
Manufacturer	LFC semi
File Size	1.89 MB
Description	20V N-Channel Enhancement Mode MOSFET
Datasheet	LMN1912-LFCsemi.pdf

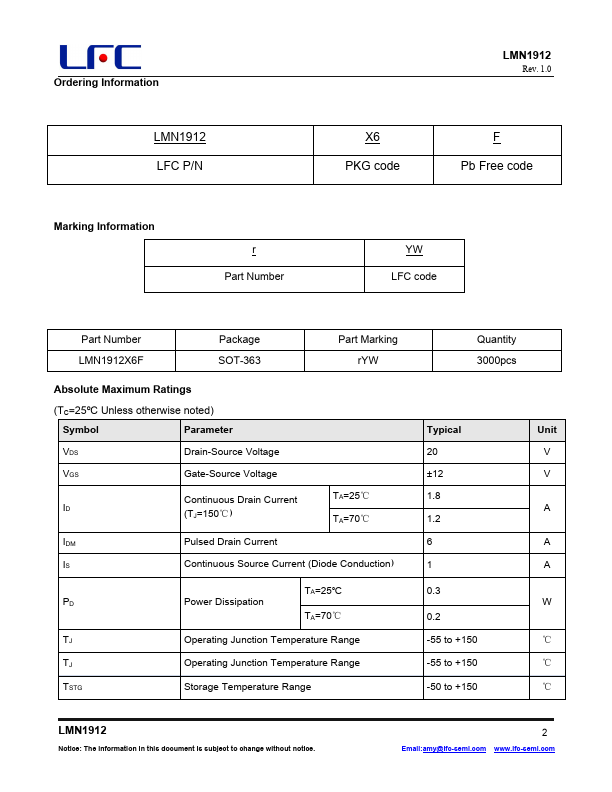

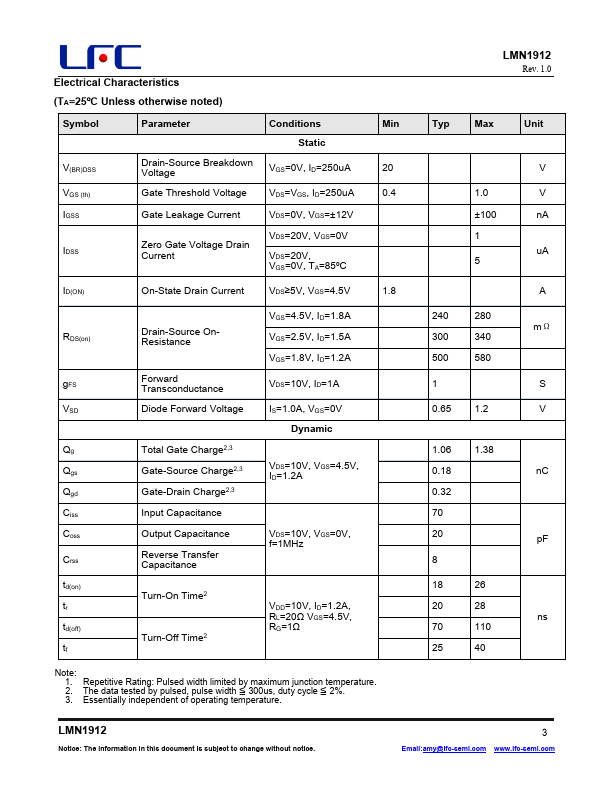

Additional preview pages of the LMN1912 datasheet.

LMN1912 Product details

Description

LMN1912, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Relays, Solenoids, Lamps, Hammers, Displays, Memories Battery Operated Systems Power Supply Converter Ci

Features

20V, 1.8A, RDS(ON)=280mΩ@VGS=4.5V.
20V, 1.5A, RDS(ON)=340mΩ@VGS=2.5V.
20V, 1.2A, RDS(ON)=580mΩ@VGS=1.8V.
Low Offset (Error) Voltage.
Low-Voltage Operation.
High-Speed Circuits.
Low Battery Voltage Operation.
SOT-363 package design Product.
