LK2PNAC120V - PANEL MOUNTING RELAY

Download the LK2PNAC120V datasheet PDF (LK2PNDC12V included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for panel mounting relay.

LEONE

📥 Download Datasheet

Datasheet Details

Part number	LK2PNAC120V
Manufacturer	LEONE
File Size	92.08 KB
Description	PANEL MOUNTING RELAY
Datasheet	LK2PNAC120V Datasheet

📁 Similar Datasheet

LK200T3HA04W - TFT LCD (Sharp)
LK204-24-USB - Technical Manual (Matrix)
LK204-25 - User Manual (Matrix)
LK204-25 - Technical Manual (Matrix)
LK2320-7R - 150 Watt AC-DC Converters (Power-One)
LK2540-7R - 150 Watt AC-DC Converters (Power-One)
LK25XB60 - Bridge Diodes (Shindengen)
LK260T3LA17 - TFT LCD (Sharp)
LK2660-7R - 150 Watt AC-DC Converters (Power-One)

Other Datasheets by LEONE

LK2PNAC12V - PANEL MOUNTING RELAY
LK2PNAC110V - PANEL MOUNTING RELAY
LK2PNAC220V - PANEL MOUNTING RELAY
LK2PNAC240V - PANEL MOUNTING RELAY
LK2PNAC24V - PANEL MOUNTING RELAY
LK2PNAC48V - PANEL MOUNTING RELAY
LK2PNAC6V - PANEL MOUNTING RELAY
LK2PNDC100V - PANEL MOUNTING RELAY

Full PDF Text Transcription

Click to expand full text

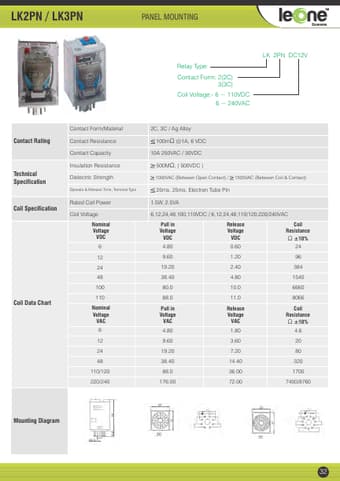

LK2PN / LK3PN PANEL MOUNTING LK 2PN DC12V Relay Type: Contact Form: 2(2C) 3(3C) Coil Voltage:- 6 ~ 110VDC 6 ~ 240VAC Contact Form/Material 2C, 3C / Ag Alloy 100mΩ @1A, 6 VDC 10A 250VAC / 30VDC 500MΩ, ( 500VDC ) 1000VAC (Between Open Contact) / 1500VAC (Between Coil & Contact) Contact Rating Contact Resistance Contact Capacity Insulation Resistance Technical Specification Dielectric Strength Operate & Release Time, Terminal Type 25ms, 25ms, Electron Tube Pin 1.5W, 2.5VA 6,12,24,48,100,110VDC / 6,12,24,48,110/120,220/240VAC Pull in Voltage VDC 4.80 9.60 19.20 38.40 80.0 88.0 Pull in Voltage VAC 4.80 9.60 19.20 38.40 88.0 176.00 Release Voltage VDC 0.60 1.20 2.40 4.80 10.0 11.0 Release Voltage VAC 1.80 3.60 7.20 14.40 36.00 72.

Published: Nov 2, 2014 |
