LESR6-NP - Current Transducer

LEM

📥 Download Datasheet

LESR6-NP Datasheet Preview — Preview of LESR6-NP PDF

datasheet Preview Page 2

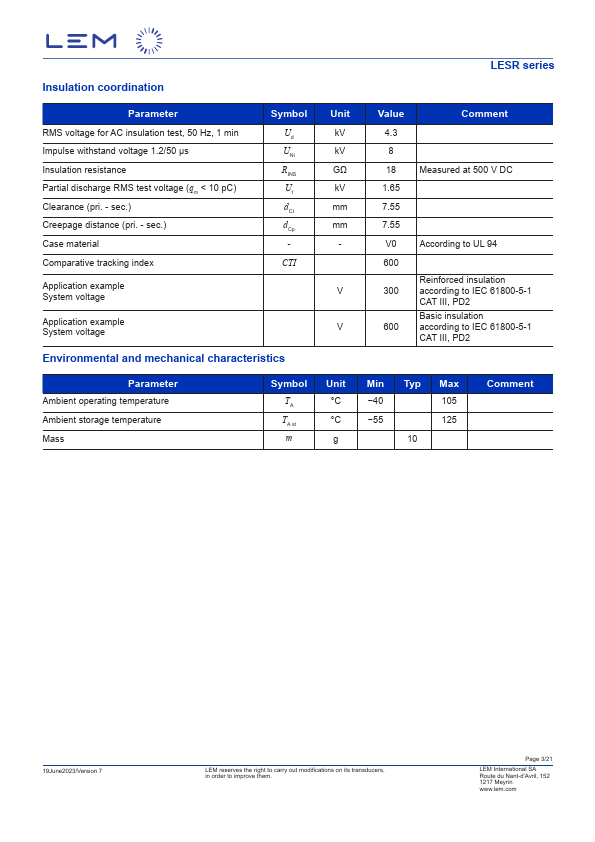

datasheet Preview Page 3

Datasheet Details

Part number	LESR6-NP
Manufacturer	LEM
File Size	1.92 MB
Description	Current Transducer
Datasheet	LESR6-NP-LEM.pdf

LESR6-NP Product details

Features

Closed loop multi-range current transducer.
Voltage output.
Unipolar supply voltage.
Compact design for PCB mounting. Advantages.
Very low offset drift.
Very good du/dt immunity.
CASR footprint compatible.
Reference pin with two modes: Ref IN and Ref OUT.
Extended measuring range for unipolar measurement.
