LC2202 - 2A 2MHz 5.5V Synchronous Buck Converter

Datasheet Summary

Description

The LC2202 is a high-efficiency, DC-to-DC stepdown switching regulators, capable of delivering up to 2A of output current.

The device operates from an input voltage range of 2.6V to 5.5V and provides an output voltage from 0.6V to VIN.

Features

  • High efficiency: up to 97%.
  • Up to 2A Max output current.
  • 2MHz switching frequency.
  • Low dropout 100% duty operation.
  • Internal compensation and soft-start.
  • Current mode control.
  • Reference 0.6V.
  • Logic control shutdown (IQ.

📥 Download Datasheet

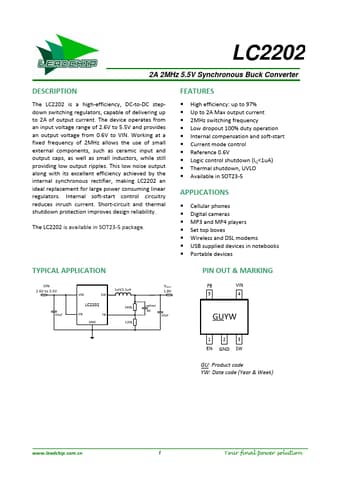

Datasheet preview – LC2202

Datasheet Details

Part number LC2202
Manufacturer LEADCHIP
File Size 785.92 KB
Description 2A 2MHz 5.5V Synchronous Buck Converter
Datasheet download datasheet LC2202 Datasheet
Additional preview pages of the LC2202 datasheet.

📁 Similar Datasheet

  • LC22024A - Gate Arrays Monolithic ICs (Sanyo Electric)
  • LC22004A - Gate Arrays Monolithic ICs (Sanyo Electric)
  • LC22008A - Gate Arrays Monolithic ICs (Sanyo Electric)
  • LC22014A - Gate Arrays Monolithic ICs (Sanyo Electric)
  • LC22043A - Gate Arrays Monolithic ICs (Sanyo Electric)
  • LC22055A - Gate Arrays Monolithic ICs (Sanyo Electric)
  • LC22068A - (LC21005A - LC22123A) Gate Arrays Monolithic ICs (Sanyo Electric)
  • LC22086A - (LC21005A - LC22123A) Gate Arrays Monolithic ICs (Sanyo Electric)
  • LC220WXE-TBA1 - WXGA TFT LCD (LG)
  • LC22 - 1500 Watt Low Capacitance Transient Voltage Suppressor (Microsemi)
Other Datasheets by LEADCHIP
  • LC2201 - 1.5A 2MHz 6V Synchronous Buck Converter
  • LC2251 - 1.5A 2MHz 5.5V Synchronous Buck Converter
  • LC2127 - 1.2A 1.5MHz 7V Synchronous Buck Converter
  • LC2137 - 1.2A 1.5MHz 7V Synchronous Buck Converter
  • LC2332B - 16V 2A Synchronous PFM/PWM Buck Converter
  • LC2332H - 2A Synchronous Step-Down Converter
  • LC2332S - 2A Synchronous Step-Down Converter
  • LC2332T - 2.5A Synchronous Step-Down Converter

Full PDF Text Transcription

Click to expand full text
LC2202 2A 2MHz 5.5V Synchronous Buck Converter DESCRIPTION The LC2202 is a high-efficiency, DC-to-DC stepdown switching regulators, capable of delivering up to 2A of output current. The device operates from an input voltage range of 2.6V to 5.5V and provides an output voltage from 0.6V to VIN. Working at a fixed frequency of 2MHz allows the use of small external components, such as ceramic input and output caps, as well as small inductors, while still providing low output ripples. This low noise output along with its excellent efficiency achieved by the internal synchronous rectifier, making LC2202 an ideal replacement for large power consuming linear regulators. Internal soft-start control circuitry reduces inrush current.
