CX-53F - Ultra-thin/ thickness 1.1mm or less.

Kyocera Kinseki Corpotation

Datasheet Details

Part number	CX-53F
Manufacturer	Kyocera Kinseki Corpotation
File Size	172.99 KB
Description	Ultra-thin/ thickness 1.1mm or less.

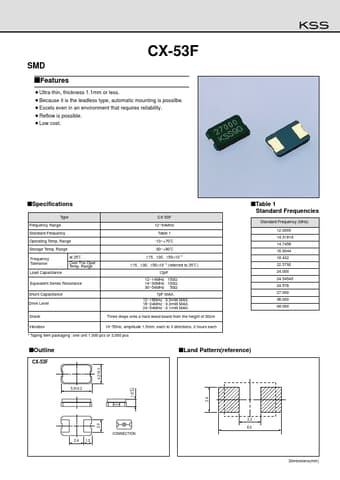

Datasheet	CX-53F_KyoceraKinsekiCorpotation.pdf

¡Ultra-thin, thickness 1.1mm or less. ¡Because it is the leadless type, automatic mounting is possilbe. ¡Excels even in an environment that requires reliability. ¡Reflow is possible. ¡Low cost. sSpecifications Type Frequency Range Standard Frequency Operating Temp. Range Storage Temp. Range Frequency Tolerance Load Capacitance Equivalent Series Resistance Shunt Capacitance Drive Level Shock Vibration at 25: Over The Oper. Temp. Range CX-53F 12~54MHz Table 1 -10~+70: -30~+80: ±15, ±30, ±50×10.
