CX-101F - Ultra-thin/ thickness 0.75mm. (3.22.50.75mm)

Kyocera Kinseki Corpotation

Datasheet Details

Part number	CX-101F
Manufacturer	Kyocera Kinseki Corpotation
File Size	156.19 KB
Description	Ultra-thin/ thickness 0.75mm. (3.22.50.75mm)
Datasheet	CX-101F_KyoceraKinsekiCorpotation.pdf

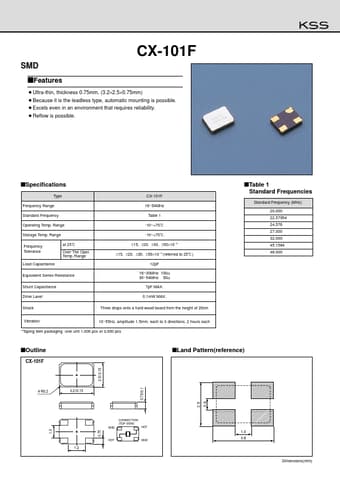

¡Ultra-thin, thickness 0.75mm. (3.2×2.5×0.75mm) ¡Because it is the leadless type, automatic mounting is possible. ¡Excels even in an environment that requires reliability. ¡Reflow is possible. sSpecifications Type Frequency Range Standard Frequency Operating Temp. Range Storage Temp. Range Frequency Tolerance Load Capacitance Equivalent Series Resistance Shunt Capacitance Drive Lavel Shock Vibration at 25: Over The Oper. Temp. Range CX-101F 16~54MHz Table 1 -10~+70: -10~+70: ±15, ±20, ±30, ±50×.
