KS62036CAT - Single N-Channel Advanced Power MOSFET

Product Overview

Datasheet Details

Part number	KS62036CAT
Manufacturer	Kwansemi
File Size	516.30 KB
Description	Single N-Channel Advanced Power MOSFET
Datasheet	KS62036CAT Datasheet

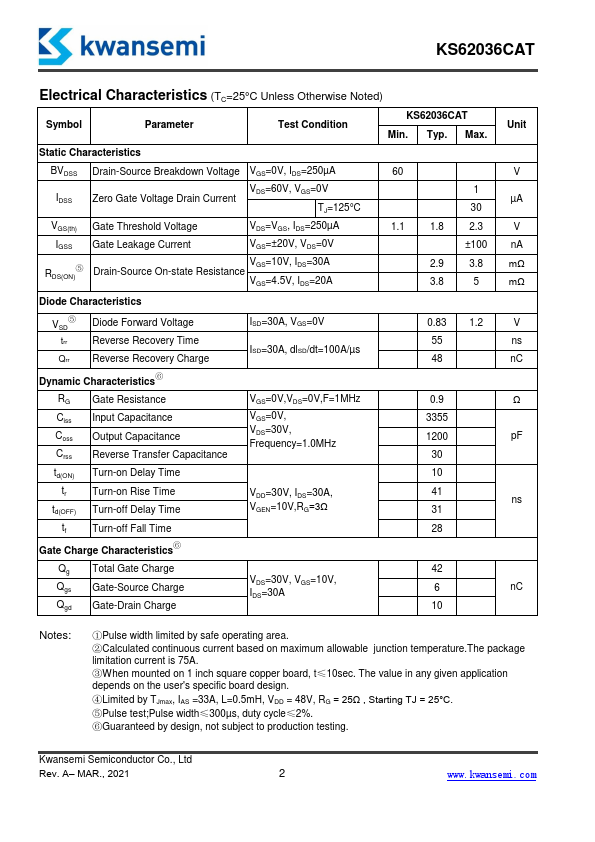

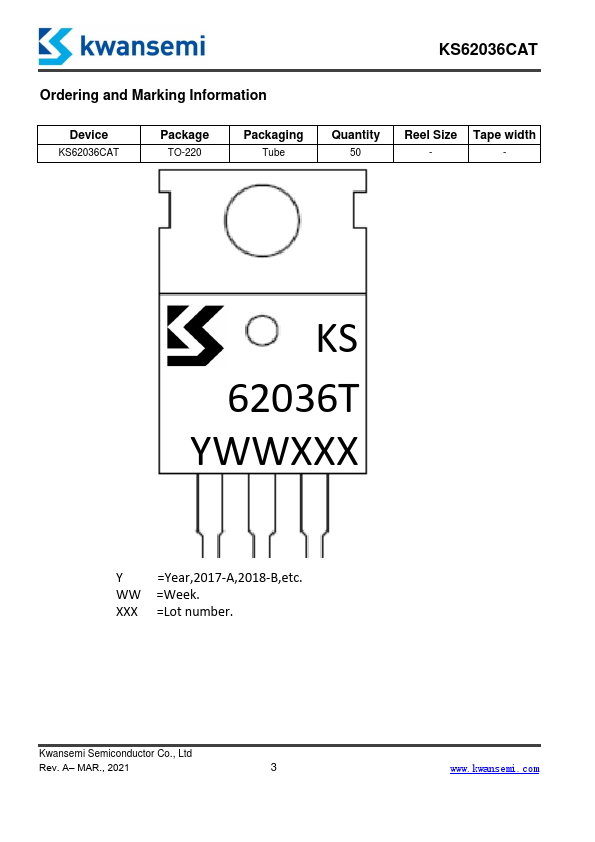

Additional preview pages of the KS62036CAT datasheet.

Product details

Description

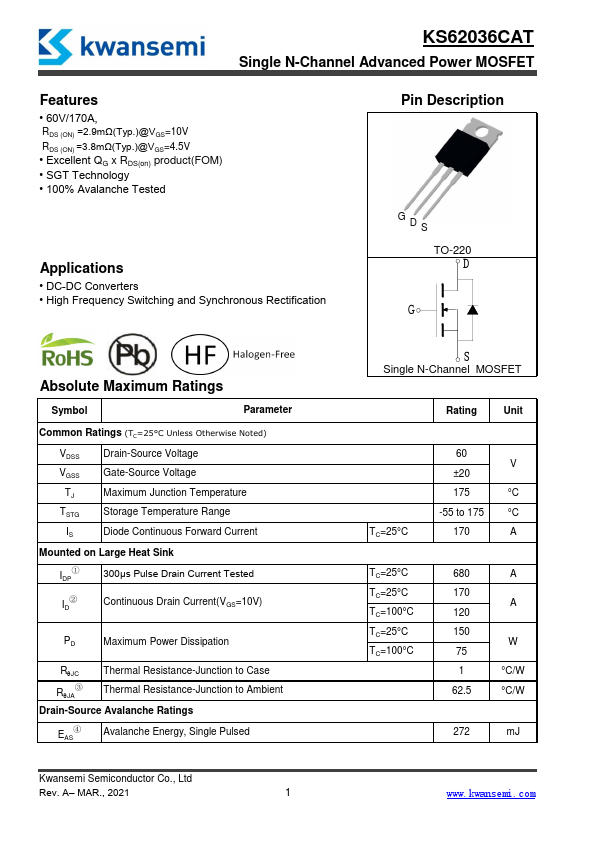

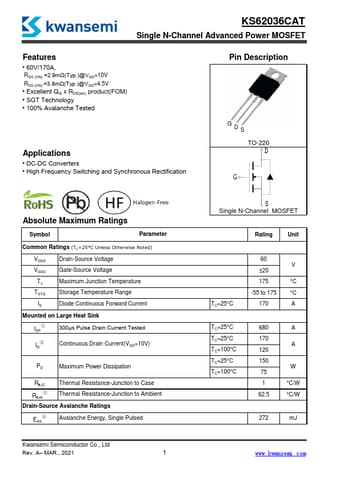

GDS TO-220 D G Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat Sink IDP① 300μs Pulse Drain Current Tested ID② Continuous Drain Current(VGS=10V) PD Maximum Power Dissipation RqJC ③ RqJA Thermal Resistance-Junction to Case Thermal Resistance-Junction to Ambient Drai

Features

60V/170A, RDS (ON) =2.9mΩ(Typ. )@VGS=10V RDS (ON) =3.8mΩ(Typ. )@VGS=4.5V.
Excellent QG x RDS(on) product(FOM).
SGT Technology.
100% Avalanche Tested.
