KPA1816 - MOS Field Effect Transistor

Kexin

📥 Download Datasheet

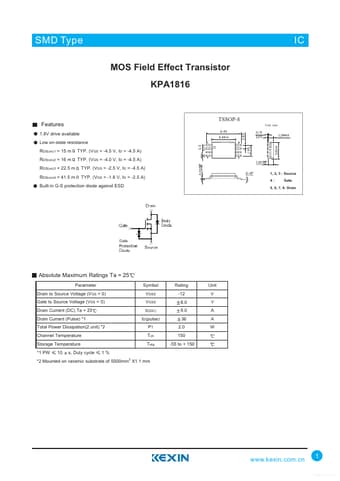

KPA1816 Datasheet Preview — Preview of KPA1816 PDF

datasheet Preview Page 2

Datasheet Details

Part number	KPA1816
Manufacturer	Kexin
File Size	66.43 KB
Description	MOS Field Effect Transistor
Datasheet	KPA1816_Kexin.pdf

KPA1816 Product details

Features

1.8V drive available Low on-state resistance RDS(on)1 = 15 m RDS(on)2 = 16 m RDS(on)3 = 22.5 m RDS(on)4 = 41.5 m TYP. (VGS = -4.5 V, ID = -4.5 A) TYP. (VGS = -4.0 V, ID = -4.5 A) TYP. (VGS = -2.5 V, ID = -4.5 A) TYP. (VGS = -1.8 V, ID = -2.5 A) TSSOP-8 Unit: mm 1, 2, 3 : Source 4: Gate Built-in G-S protection diode against ESD 5, 6, 7, 8: Drain Absolute Maximum Ratings Ta = 25 Parameter Drain to Source Voltage (VGS = 0) Gate to Source Voltage (VDS = 0) Drain Current (DC) Ta = 25 Drain Curre.
