KPA1750 - MOS Field Effect Transistor

KPA1750 Description

SMD Type MOS Field Effect Transistor KPA1750 .

KPA1750 Features

* Dual MOSFET chips in small package 4V Gate Drive Type and Low On-Resistance RDS(on)1 = 0.09 RDS(on)2 = 0.18 TYP. (VGS = -10 V, ID = -1.8 A) TYP. (VGS = -4 V, ID = -1.8A) IC IC Low Ciss : Ciss = 540 pF TYP. Built-in G-S protection diode Small and surface mount package 1: Source 1 2: Gate 1 7,8: Dra

📥 Download Datasheet

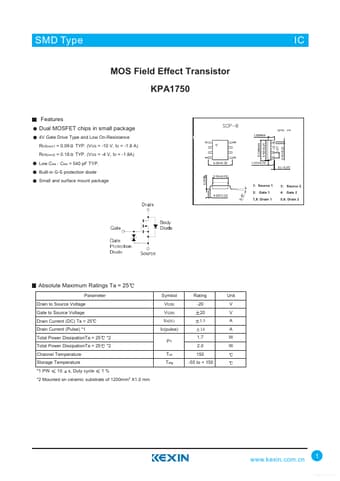

Preview of KPA1750 PDF
datasheet Preview Page 2

Datasheet Details

Part number
KPA1750
Manufacturer
Kexin
File Size
69.75 KB
Datasheet
KPA1750_Kexin.pdf
Description
MOS Field Effect Transistor
