BC860 - PNP Transistors

Download the BC860 datasheet PDF. This datasheet also covers the BC859 variant, as both devices belong to the same pnp transistors family and are provided as variant models within a single manufacturer datasheet.

Features

  • s.
  • Low current (max. 100 mA).
  • Low voltage (max. 45 V).
  • NPN complements: BC849 and BC850. +0.22.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.21.6 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.21.1 -0.1 1. Base 2. Emitter 3. Collector 0-0.1 +0.10.68 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage BC859 BC860 Collector - Emitter Voltage BC859 BC860 Emitter - Base Voltage Collector Current - Continuous.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BC859-Kexin.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BC860 Transistor LGE
BC860 Silicon PNP transistor BLUE ROCKET ELECTRONICS
BC860 PNP general purpose transistors NXP
BC860 PNP EPITAXIAL SILICON TRANSISTOR Fairchild Semiconductor
BC860 EPITAXIAL PLANAR PNP TRANSISTOR KEC

Other Datasheets by Kexin Semiconductor

Part Number Description
BC860B PNP Transistors
BC860C PNP Transistors
BC868 NPN Medium Power Transistor
BC869 PNP Medium Power Transistor
BC846AW NPN General Purpose Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

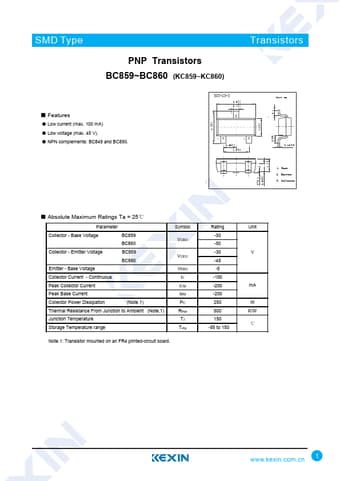

SMD Type PNP Transistors BC859~BC860 (KC859~KC860) Transistors ■ Features ● Low current (max. 100 mA) ● Low voltage (max. 45 V). ● NPN complements: BC849 and BC850. +0.22.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.21.6 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.21.1 -0.1 1. Base 2. Emitter 3. Collector 0-0.1 +0.10.68 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage BC859 BC860 Collector - Emitter Voltage BC859 BC860 Emitter - Base Voltage Collector Current - Continuous Peak Collector Current Peak Base Current Collector Power Dissipation (Note.1) Thermal Resistance From Junction to Ambient (Note.
