2SK2033 - N-Channel MOSFET

Kexin

📥 Download Datasheet

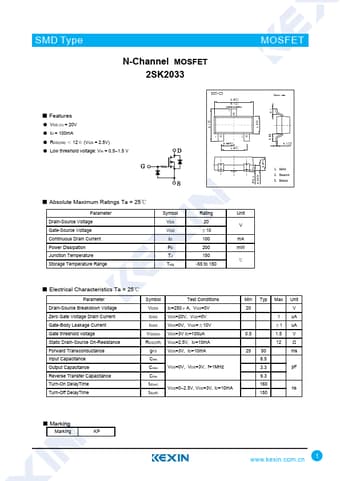

2SK2033 Datasheet Preview — Preview of 2SK2033 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK2033
Manufacturer	Kexin
File Size	737.44 KB
Description	N-Channel MOSFET
Datasheet	2SK2033-Kexin.pdf

2SK2033 Product details

Features

s.
VDS (V) = 20V.
ID = 100mA.
RDS(ON) ＜ 12Ω (VGS = 2.5V).
Low threshold voltage: Vth = 0.5~1.5 V +0.12.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.10.97 -0.1 +0.11.3 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.10.38 -0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Power Dissipation Junction Temperature Storage Temperature Ra.
