2SC3728 - Small Signal Transistor

Kexin

📥 Download Datasheet

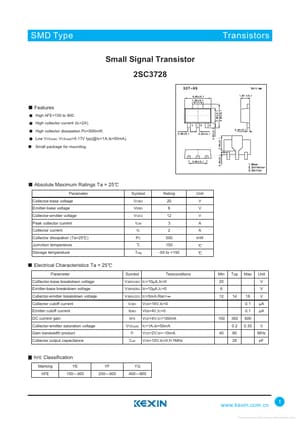

2SC3728 Datasheet Preview — Preview of 2SC3728 PDF

Datasheet Details

Part number	2SC3728
Manufacturer	Kexin
File Size	69.66 KB
Description	Small Signal Transistor
Datasheet	2SC3728_Kexin.pdf

2SC3728 Product details

Features

High hFE=150 to 800. High collector current (Ic=2A). High collector dissipation Pc=500mW. Low VCE(sat): VCE(sat)=0.17V typ(@Ic=1A,IB=50mA). Small package for mounting. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Emitter-base voltage Collector-emitter voltage Peak collector current Collector current Collector dissipation (Ta=25 ) Jumction temperature Storage temperature Symbol VCBO VEBO VCEO ICM IC PC Tj Tstg Rating 20 6 12 3 2 500 150 -55 to +150 Unit V V V A A mW Electri.
