2SC3725 - NPN Transistor

Description

High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 400V(Min) High Switching Speed High Reliability Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching regulators Ultrasonic generators High frequency inverter

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC3725 SILICON POWER TRANSISTOR SavantIC
2SC3725 TRIPLE DIFFUSED PLANER TYPE NPN TRANSISTOR New Jersey Semi-Conductor
2SC372 Silicon NPN Transistor ETC
2SC3720 Power Transistor Inchange Semiconductor
2SC3722K EPITAXIAL PLANAR NPN SILICON TRANSISTOR Rohm

Other Datasheets by Inchange Semiconductor

Part Number Description
2SC3723 NPN Transistor
2SC3709A NPN Transistor
2SC3710 NPN Transistor
2SC3743 NPN Transistor
2SC3746 NPN Transistor

Full PDF Text Transcription

Click to expand full text

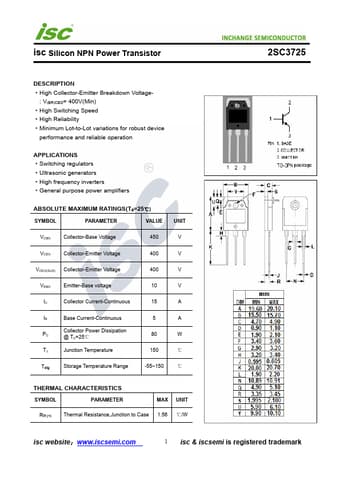

isc Silicon NPN Power Transistor 2SC3725 DESCRIPTION ·High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 400V(Min) ·High Switching Speed ·High Reliability ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Switching regulators ·Ultrasonic generators ·High frequency inverters ·General purpose power amplifiers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 450 V VCEO Collector-Emitter Voltage 400 V VCEO(SUS) Collector-Emitter Voltage 400 V VEBO Emitter-Base voltage 10 V IC Collector Current-Continuous 15 A IB Base Current-Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 5 A 80 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ THERMAL
