2SC2713 - Silicon NPN Transistor

Name: 2SC2713
SKU: 2SC2713-741844

Kexin

The 2SC2713 by Kexin is a Silicon NPN Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SC2713
Manufacturer	Kexin
File Size	53.53 KB
Description	Silicon NPN Transistor
Datasheet	2SC2713_Kexin.pdf

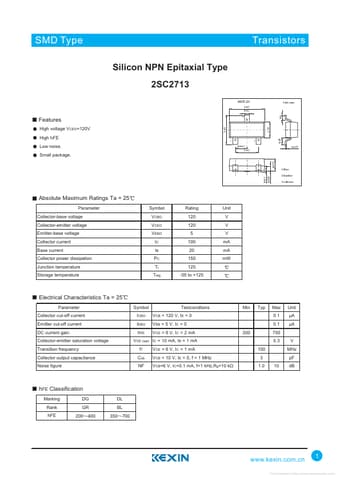

Additional preview pages of the 2SC2713 datasheet.

+0.1 2.4-0.1 High voltage VCEO=120V High hFE Low noise. Small package. +0.1 1.3-0.1 1 +0.1 0.95-0.1 +0.1 1.9-0.1 2 0.55 0.4 3 +0.05 0.1-0.01 +0.1 0.97-0.1 1.Base 2.Emitter 3.collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 120 120 5 100 20 150 125 -55 to +125 Unit V V.
