2SA1418 - Transistor

Name: 2SA1418
SKU: 2SA1418-741047

Kexin

The 2SA1418 by Kexin is a Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SA1418
Manufacturer	Kexin
File Size	515.61 KB
Description	Transistor
Datasheet	2SA1418_Kexin.pdf

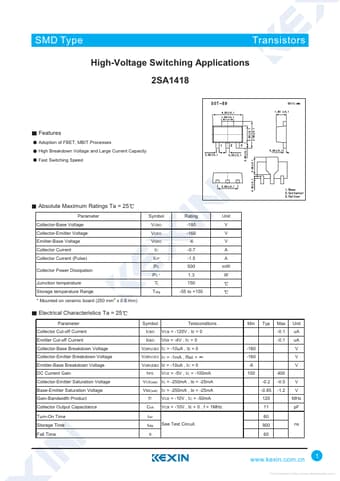

Additional preview pages of the 2SA1418 datasheet.

Adoption of FBET, MBIT Processes High Breakdown Voltage and Large Current Capacity Fast Switching Speed Absolute Maximum Ratings Ta = 25 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Current (Pulse) Collector Power Dissipation Jumction temperature Storage temperature Range.
Mounted on ceramic board (250 mm x 0.8 mm) 2 Symbol VCBO VCEO VEBO IC ICP PC PC.
Tj Tstg Rating -180 -160 -6 -0.7 -1.5 500 1.3 150 -55 to +150 Unit V.
