1N5820 - Schottky Diodes

1N5820 Description

SMD Type Schottky Diodes 1N5820 ~ 1N5822 Diodes * .

1N5820 Features

* Low power loss, high efficiency
* High current capability, low forward voltage drop
* High surge capability
* Guardring for overvoltage protection DO-214AC(SMA) 2.126 1.397 2 4.597 3.988 2.896 2.22 1 2.489 2.02 Unit: mm 4.32 4.12 5.668 4.925 2.438 1.981 2.75 2.55 5.87 5.67

📥 Download Datasheet

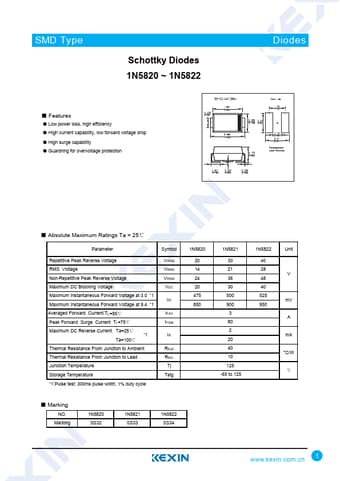

Preview of 1N5820 PDF
datasheet Preview Page 2

Datasheet Details

Part number
1N5820
Manufacturer
Kexin
File Size
819.80 KB
Datasheet
1N5820-Kexin.pdf
Description
Schottky Diodes
