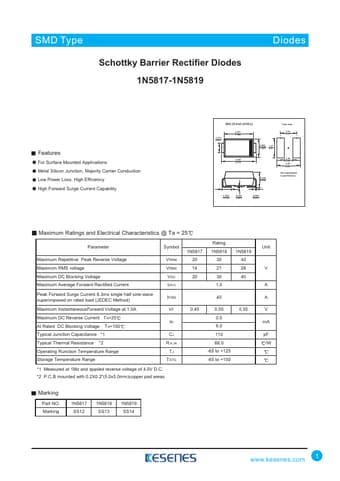

1N5817, Schottky Barrier Rectifier Diodes

SMD Type Schottky Barrier Rectifier Diodes 1N5817-1N5819 Diodes

Applications

* Metal Silicon Junction, Majority Carrier Conduction Low Power Loss, High Efficiency High Forward Surge Current Capability DO-214AC(SMA) 1.575 1.397 2 4.597 3.988 2.896 1.67 1 2.489 1.47 Unit: mm 3.93 3.73 5.283 4.775 2.438 1.981 2.38 2.18 5.49 5.29 Recommended Land Pattern 1.524 0.762 0.20
