S6503 - Power Factor Collector

S6503 Description

S6503/P Power Factor Collector .
It is Adaptable to a Discontinuous Mode of Operation that the S6503/P is Advanced PFC (Power Factor Correction) Controller for the High Density Switch.

S6503 Features

* is able to prevent Abnormal Condition, Open Lamp & Over Voltage. Features
* Very Precise Adjustable Output OVP (Dynamic & Static OVP Function)
* Extremely Low Start-Up Current
* Low Operating Supply Current
* Internal Start-Up Timer
* Power Factor Maximizer &

S6503 Applications

* Switching Mode Power Supply (SMPS)

📥 Download Datasheet

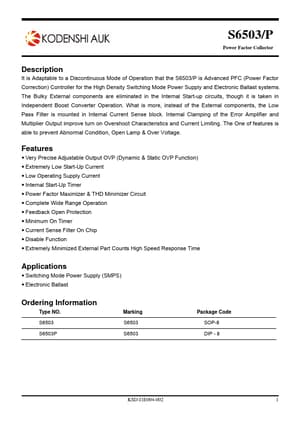

Preview of S6503 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S6503
Manufacturer
KODENSHI
File Size
333.82 KB
Datasheet
S6503-KODENSHI.pdf
Description
Power Factor Collector
