S6500P - POWER FACTOR CORRECTION

S6500P Description

F Semiconductor S6500P POWER FACTOR CORRECTION .
This device is power factor correction controller using a discontinues conduction mode of boost converter.

S6500P Features

* Dynamic, Static & Feedback OVP Extremely Low Start up Current (30uA Typ. ) Very Low Operating Current (4mA Typ. ) Internal Self Start Timer Current Sense with Internal RC Filter Trimmed ±1.5% internal Reference U

S6500P Applications

* Electronic Ballast
* SMPS Ordering Information Type NO. S6500P Marking S6500P Package Code DIP-8 Outline Dimensions PIN Collection unit : mm KSI-L013-001 1 Internal Block Diagram 2. 5V Ref S6500P Under Voltage Lock Out Vcc + Error Amplifier INV 0.4 V 1 - Feedback OVP 40u

📥 Download Datasheet

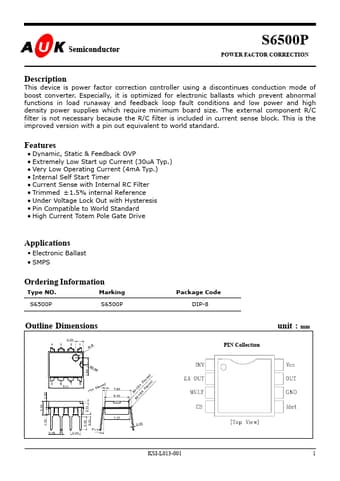

Preview of S6500P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S6500P
Manufacturer
AUK corp
File Size
513.08 KB
Datasheet
S6500P_AUKcorp.pdf
Description
POWER FACTOR CORRECTION
