PIC-A1814 OPTIC RECEIVER

PIC-A1814 Description

OPTIC RECEIVER MODULE PIC-A1814 SERIES LJ SY PIC-A1814、、 。 The PIC-A1814 series are compact type detecting sensors for optical remote control, whi.

PIC-A1814 Features

* High noise immunity
* Compact and lightweight design
* Long distance detecting
* Various shapes of package

PIC-A1814 Applications

* Optical ｒemote control MAXIMUM RATINGS Item （Ta＝25℃） Symbol Rating Unit Power Supply Voltage Storage Temp. VR Topr. 5.5 V -10～+60
* 1 ℃ Storage Temp. Tstg. -20～+75 ℃ Soldering Temp. Tsol. 260
* 2 ℃ ＊1. No dew　 ＊2. 2mm、5　。 Soldering should be within 5 seconds (max), inclu

📥 Download Datasheet

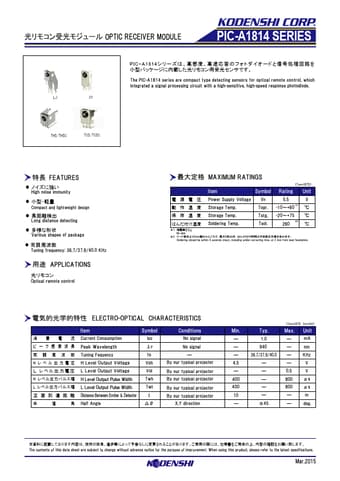

Preview of PIC-A1814 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PIC-A1814
Manufacturer
KODENSHI
File Size
1.21 MB
Datasheet
PIC-A1814-KODENSHI.pdf
Description
OPTIC RECEIVER
