PIC-A1824, PIC-A1804 OPTIC RECEIVER

PIC-A1824 Description

OPTIC RECEIVER MODULE PIC-A1804 A1824 SERIES LM LU SM SR PIC-A1804/PIC-A1824 *1、、 。 The PIC-A1804/PIC-A1824 series are compact type detecting s.

PIC-A1824 Features

* High noise immunity
* Compact and lightweight design
* Long distance detecting
* Various shapes of package

PIC-A1824 Applications

* Optical ｒemote control MAXIMUM RATINGS Item Symbol （Ta＝25℃） Rating Unit Power Supply Voltage Storage Temp. VR Topr. 5.5 V -10～+60
* 1 ℃ Storage Temp. Tstg. -20～+75 ℃ Soldering Temp. Tsol. 260
* 2 ℃ ＊1. No dew　 ＊2. 2mm、5　。 Soldering should be within 5 seconds (max), includ

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PIC-A1824, PIC-A1804. Please refer to the document for exact specifications by model.

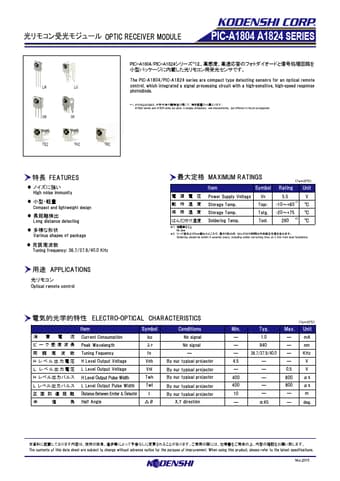

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PIC-A1824, PIC-A1804
Manufacturer
KODENSHI
File Size
1.28 MB
Datasheet
PIC-A1804-KODENSHI.pdf
Description
OPTIC RECEIVER
Note
This datasheet PDF includes multiple part numbers: PIC-A1824, PIC-A1804.
Please refer to the document for exact specifications by model.
