HL615 - INFRARED EMITTING DIODES

HL615 Description

INFRARED EMITTING DIODES(GaAlAs) HL615 HL615、GaAlAs。 HL615 is a surface mount type GaAlAs infrared emitting diode with resin lens..

HL615 Features

* 、 ±20° Package with resin lens, half angle ±20°
* 3.2(L) x 1.5(W) x 2.0(H) mm Small thin SMD package 3.2(L) x 1.5(W) x 2.0(H) mm
* Available to be mounted on the PCB backside

HL615 Applications

* CCD、、 Light source for CCD, Security camera, Night vision device MAXIMUM RATINGS （Ta＝25℃） Item Symbol Rating Unit Reverse Voltage VR 5 V Forward Current Pulse Forward Current IF IFP 50 mA 0.5
* 1 A Power Dissipation Operating Temp. PD Topr. 70 mW -20～+70
* 2 ℃

📥 Download Datasheet

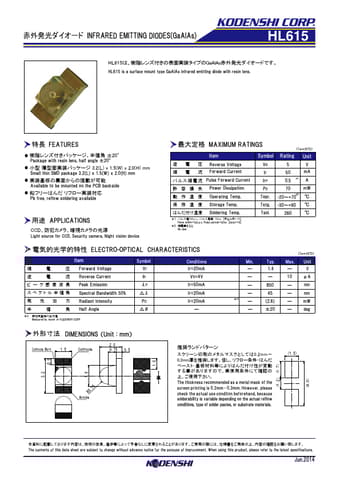

Preview of HL615 PDF
