K4N25A Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)

KODENSHI KOREA CORP

Description

Photocoupler K4N25 * K4N25A These Photocouplers consist of a Gallium Arsenide Infrared Emitting DIMENSION Diode and a Silicon NPN Phototransi.

📥 Download Datasheet

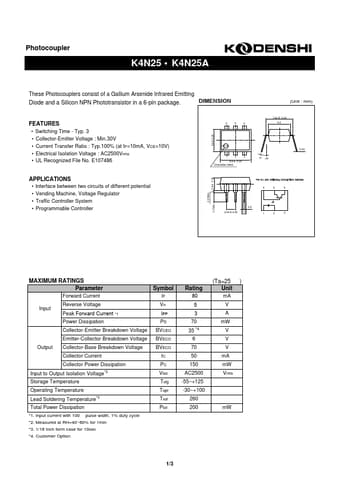

K4N25A Datasheet Preview — Preview of K4N25A PDF

Datasheet Specifications

Part number: K4N25A
Manufacturer: KODENSHI KOREA CORP
File Size: 256.34 KB
Datasheet: K4N25A_KodenshiCorp.pdf
Description: Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)

Features

* Switching Time - Typ. 3
* Á
* Collector-Emitter Voltage : Min.30V
* Current Transfer Ratio : Typ.100% (at IF=10mA, VCE=10V)
* Electrical Isolation Voltage : AC2500Vrms
* UL Recognized File No. E107486 0.25 6 5 4 6.4 6.4 0.25 1 8.9 Orientation Mark 2

Applications

* Interface between two circuits of different potential
* Vending Machine, Voltage Regulator
* Traffic Controller System
* Programmable Controller 0.51Min. 0.25 6 5 4 2.7Min. 3.8 0.5 2.54 0.25 1.2 1 2 3 MAXIMUM RATINGS Parameter Forward Current Input Revers
