KIA50N03 - N-CHANNEL MOSFET

KIA50N03 Description

KIA SEMICONDUCTORS 50 Amps, 30 Volts N-CHANNEL MOSFET 1..

KIA50N03 Features

* Advanced trench process technology
* High density cell design for ultra low on-resistance

KIA50N03 Applications

* VDSS=30V,RDS(on)=6.5mΩ,ID=50A
* Vds=30V
* RDS(ON)=6.5mΩ(Max. ),VGS@10V,Ids@30A
* RDS(ON)=9.5mΩ(Max. ),VGS@4.5V,Ids@30A 3. Pin configuration 50N03 Pin Function 1 Gate 2 Drain 3 Source 4 Drain 1 of 3 Rev 1.0 JAN 2014 KIA SEMICONDUCTORS N-CHANNEL ENHANCEMENT-MODE MOSFET 50N03 4

📥 Download Datasheet

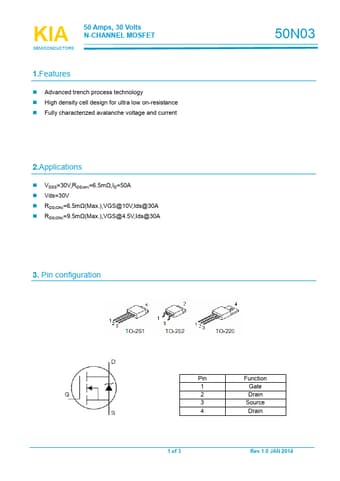

Preview of KIA50N03 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KIA50N03
Manufacturer
KIA
File Size
6.83 MB
Datasheet
KIA50N03-KIA.pdf
Description
N-CHANNEL MOSFET
