MURF1060, MURF1005 SUPER FAST RECOVERY SILICON RECTIFIER

Description

MURF1005 THRU MURF1060 SUPER FAST RECOVERY SILICON RECTIFIER Reverse Voltage - 50 to 600 Volts Forward Current - 10.0 Ampere .

📥 Download Datasheet

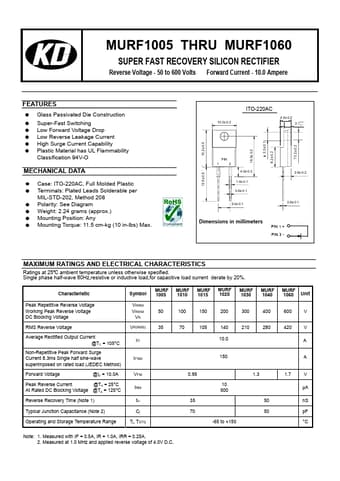

MURF1060 Datasheet Preview — This datasheet PDF includes multiple part numbers: MURF1060, MURF1005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MURF1060, MURF1005
Manufacturer: KD
File Size: 583.68 KB
Datasheet: MURF1005-KD.pdf
Description: SUPER FAST RECOVERY SILICON RECTIFIER
Note: This datasheet PDF includes multiple part numbers: MURF1060, MURF1005.
Please refer to the document for exact specifications by model.

Features

* Glass Passivated Die Construction Super-Fast Switching Low Forward Voltage Drop Low Reverse Leakage Current High Surge Current Capability Plastic Material has UL Flammability Classification 94V-O MECHANICAL DATA Case: ITO-220AC, Full Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202,
