MURF1015, MURF1005 SUPER FAST RECOVERY SILICON RECTIFIER

MURF1015 Description

MURF1005 THRU MURF1060 SUPER FAST RECOVERY SILICON RECTIFIER Reverse Voltage - 50 to 600 Volts Forward Current - 10.0 Ampere .

MURF1015 Features

* Glass Passivated Die Construction Super-Fast Switching Low Forward Voltage Drop Low Reverse Leakage Current High Surge Current Capability Plastic Material has UL Flammability Classification 94V-O MECHANICAL DATA Case: ITO-220AC, Full Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MURF1015, MURF1005. Please refer to the document for exact specifications by model.

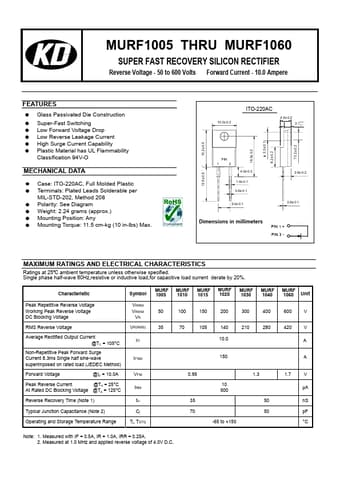

datasheet Preview Page 2

Datasheet Details

Part number
MURF1015, MURF1005
Manufacturer
KD
File Size
583.68 KB
Datasheet
MURF1005-KD.pdf
Description
SUPER FAST RECOVERY SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MURF1015, MURF1005.
Please refer to the document for exact specifications by model.
