CJ7812F - Three-terminal positive voltage regulator

Name: CJ7812F
SKU: CJ7812F-650010

Jiangsu Changjiang Electronics Technology

The CJ7812F by Jiangsu Changjiang Electronics Technology is a Three-terminal positive voltage regulator. Below is the official datasheet preview.

📥 Download Datasheet

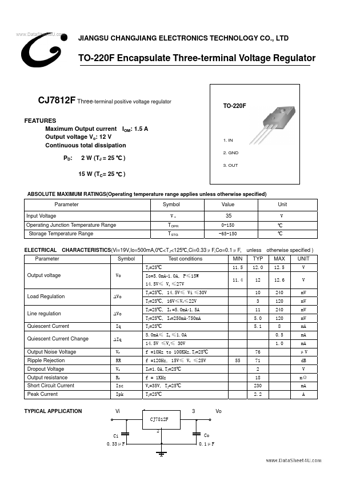

CJ7812F Three-terminal positive voltage regulator by Jiangsu Changjiang Electronics Technology - Datasheet Preview — Official preview page of the **CJ7812F** Three-terminal positive voltage regulator datasheet (Jiangsu Changjiang Electronics Technology).

Datasheet Details

Part number	CJ7812F
Manufacturer	Jiangsu Changjiang Electronics Technology
File Size	119.44 KB
Description	Three-terminal positive voltage regulator
Datasheet	CJ7812F_JiangsuChangjiangElectronicsTechnology.pdf
Additional preview pages of the CJ7812F datasheet.

CJ7812F Product details

Features

Maximum Output current IOM: 1.5 A Output voltage Vo: 12 V Continuous total dissipation PD: 2 W (TJ = 25 ℃ ) 15 W (TC= 25 ℃ ) TO-220F 123 1. IN 2. GND 3. OUT.
