CJ78L05 - Three Terminal Positive Regulators

CJ78L05 Description

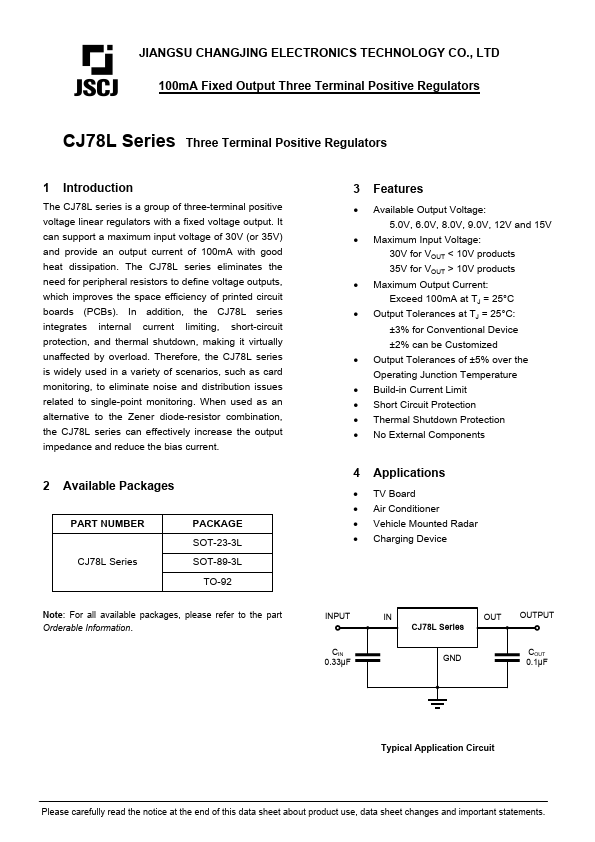

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD 100mA Fixed Output Three Terminal Positive Regulators CJ78L Series Three Terminal Positive Regulato.

CJ78L05 Features

* Available Output Voltage: 5.0V, 6.0V, 8.0V, 9.0V, 12V and 15V
* Maximum Input Voltage: 30V for VOUT < 10V products 35V for VOUT > 10V products
* Maximum Output Current: Exceed 100mA at TJ = 25°C
* Output Tolerances at TJ = 25°C: ±3% for Conventional Device ±2% can b

CJ78L05 Applications

* TV Board
* Air Conditioner
* Vehicle Mounted Radar
* Charging Device INPUT CIN 0.33µF IN OUT OUTPUT CJ78L Series GND COUT 0.1µF Typical Application Circuit Please carefully read the notice at the end of this data sheet about product use, data sheet changes an

📥 Download Datasheet

CJ78L05 Datasheet Preview — Preview of CJ78L05 PDF

Datasheet Details

Part number: CJ78L05
Manufacturer: JSCJ
File Size: 1.55 MB
Datasheet: CJ78L05-JSCJ.pdf
Description: Three Terminal Positive Regulators
