5W4VC-E40R Datasheet (Jiangmen Xinqiao Optoelectronic)

5W4VC-E40R, LED

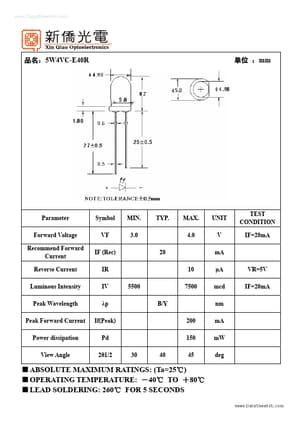

www.DataSheet4U.com ：5W4VC-E40R ：mm Parameter Forward Voltage Recommend Forward Current Reverse Current Luminous Intensity Peak Wavelength Peak Forward Current Power dissipation View Angle Symbol VF IF (Rec) IR IV λp If(Peak) Pd 2θ1/2 MIN.

3.0 TYP.

MAX.

4.0 UNIT V mA TEST CONDITION IF=20mA 20 10 5500 B/Y 200 150 30 40 45 7500 μA mcd nm mA mW deg VR=5V IF=20mA ABSOLUTE MAXIMUM RATINGS: (Ta=25℃) OPERATING TEMPERATURE: －40℃ TO ＋80℃ LEAD SOLDERING: 260℃ FOR 5 SECONDS
