5W4VC-E15Y - LED

Product Overview

Part number	5W4VC-E15Y
Manufacturer	Jiangmen Xinqiao Optoelectronic
File Size	120.88 KB
Description	LED
Datasheet	5W4VC-E15Y Datasheet

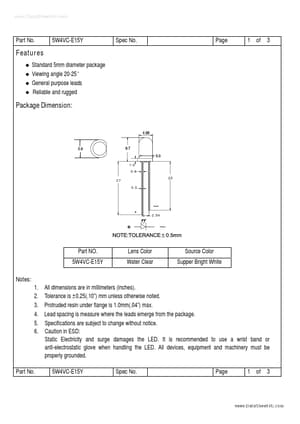

Additional preview pages of the 5W4VC-E15Y datasheet.

Standard 5mm diameter package Viewing angle 20-25° General purpose leads Reliable and rugged Package Dimension: 1.0 0.6 27 0.5 25 2.54 Part NO. 5W4VC-E15Y Notes: Lens Color Water Clear Source Color Supper Bright White 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(.10”) mm unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04”) max. 4. Lead spacing is measure where the leads emerge from the package. 5. 6. Specifications are sub.
