NJM2742 Single Supply / DIP8 / DMP8 / SSOP8 / TVSP8

NJM2742 Description

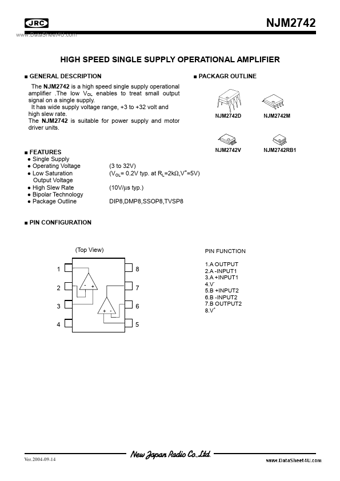

NJM2742 www.DataSheet4U.com HIGH SPEED SINGLE SUPPLY OPERATIONAL AMPLIFIER * GENERAL .
The NJM2742 is a high speed single supply operational amplifier .

NJM2742 Features

* Single Supply
* Operating Voltage
* Low Saturation Output Voltage
* High Slew Rate
* Bipolar Technology
* Package Outline
* PIN CONFIGURATION NJM2742V NJM2742RB1 (3 to 32V) (VOL= 0.2V typ. at RL=2kΩ,V+=5V) (10V/µs typ. ) DIP8,DMP8,SSOP8,TVSP8 (Top View) PIN FUNCTION
