NJM2741 - Single Supply / SC88A / SOT-23(MTP5)

Description

The NJM2741 is a low supply voltage operational amplifier with Full swing output.

The output full swing function provides wide dynamic range, is from ground to power supply level.

And Input range rails from ground level.

Features

  • S.
  • Operating Voltage.
  • Output Full Swing.
  • Offset Voltage.
  • Slew Rate.
  • Low Distortion.
  • Low Input Voltage Noise.
  • Bipolar Technology.
  • Package Outline.
  • PIN.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NJM2740 DUAL OPERATIONAL AMPLIFIER New Japan Radio
NJM2744 High Speed Single Supply Quad Operational Amplifier New Japan Radio
NJM2745 QUAD OPERATIONAL AMPLIFIER New Japan Radio
NJM2746 Rail-to-Rail Output Dual Operational Amplifier New Japan Radio
NJM2748 Low Drift single JFET Input Operational Amplifier New Japan Radio

Other Datasheets by New Japan Radio

Part Number Description
NJM2742 Single Supply / DIP8 / DMP8 / SSOP8 / TVSP8
NJM2743 Single Supply / SOT-23(MTP5)
NJM2747 Single Supply / DIP14 / DMP14 / EMP14 / SSOP14
NJM2710 Dual Supply / DMP20 / SSOP20
NJM2727 Dual Supply / DIP14 / EMP14

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

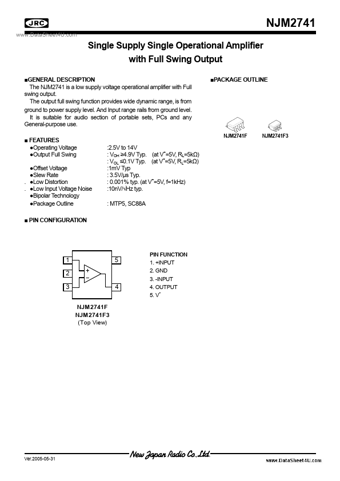

NJM2741 www.DataSheet4U.com Single Supply Single Operational Amplifier with Full Swing Output ■GENERAL DESCRIPTION The NJM2741 is a low supply voltage operational amplifier with Full swing output. The output full swing function provides wide dynamic range, is from ground to power supply level. And Input range rails from ground level. It is suitable for audio section of portable sets, PCs and any General-purpose use. ■ FEATURES ●Operating Voltage ●Output Full Swing ●Offset Voltage ●Slew Rate . ●Low Distortion . ●Low Input Voltage Noise ●Bipolar Technology ●Package Outline ■ PIN CONFIGURATION ■PACKAGE OUTLINE NJM2741F NJM2741F3 :2.5V to 14V : VOH ≥4.9V Typ. (at V+=5V, RL=5kΩ) : VOL ≤0.1V Typ. (at V+=5V, RL=5kΩ) :1mV Typ : 3.5V/µs Typ. : 0.001% typ. (at V+=5V, f=1kHz) :10nV/√Hz typ.
