The 78L24A by JRC is a 3-TERMINAL POSITIVE VOLTAGE REGULATOR. Below is the official datasheet preview.
| Part number | 78L24A, 78L02A |
|---|---|
| Manufacturer | JRC |
| File Size | 238.93 KB |
| Description | 3-TERMINAL POSITIVE VOLTAGE REGULATOR |
| Datasheet |
 78L02A-JRC.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: 78L24A, 78L02A. Please refer to the document for exact specifications by model. |
|
|

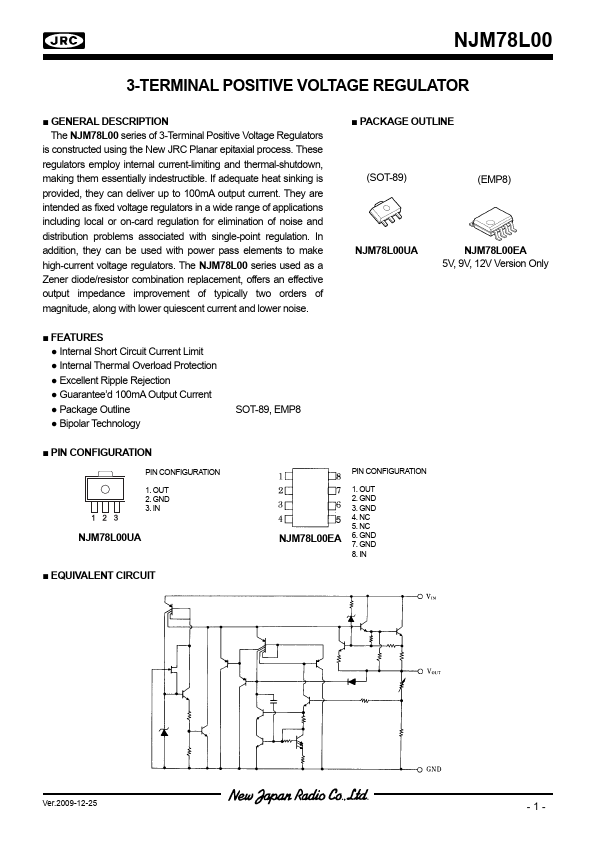

The NJM78L00 series of 3-Terminal Positive Voltage Regulators is constructed using the New JRC Planar epitaxial process.These regulators employ internal current-limiting and thermal-shutdown, making them essentially indestructible.If adequate heat sinking is provided, they can deliver up to 100mA output current.They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with s
