78L03A - 3-TERMINAL POSITIVE VOLTAGE REGULATOR

This page provides the datasheet information for the 78L03A, a member of the 78L02A 3-TERMINAL POSITIVE VOLTAGE REGULATOR family.

Datasheet Summary

Description

is constructed using the New JRC Planar epitaxial process.

These regulators employ internal current-limiting and thermal-shutdown, making them essentially indestructible.

Features

  • S.
  • Internal Short Circuit Current Limit.
  • Internal Thermal Overload Protection.
  • Excellent Ripple Rejection.
  • Guarantee’d 100mA Output Current.
  • Package Outline.
  • Bipolar Technology SOT-89, EMP8.
  • PIN.

📥 Download Datasheet

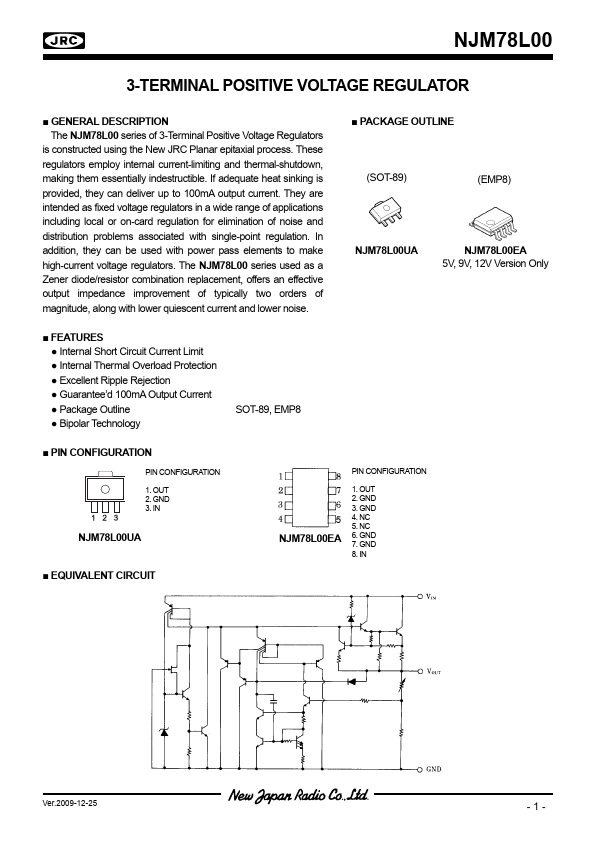

Datasheet preview – 78L03A

Datasheet Details

Part number 78L03A
Manufacturer JRC
File Size 238.93 KB
Description 3-TERMINAL POSITIVE VOLTAGE REGULATOR
Datasheet download datasheet 78L03A Datasheet

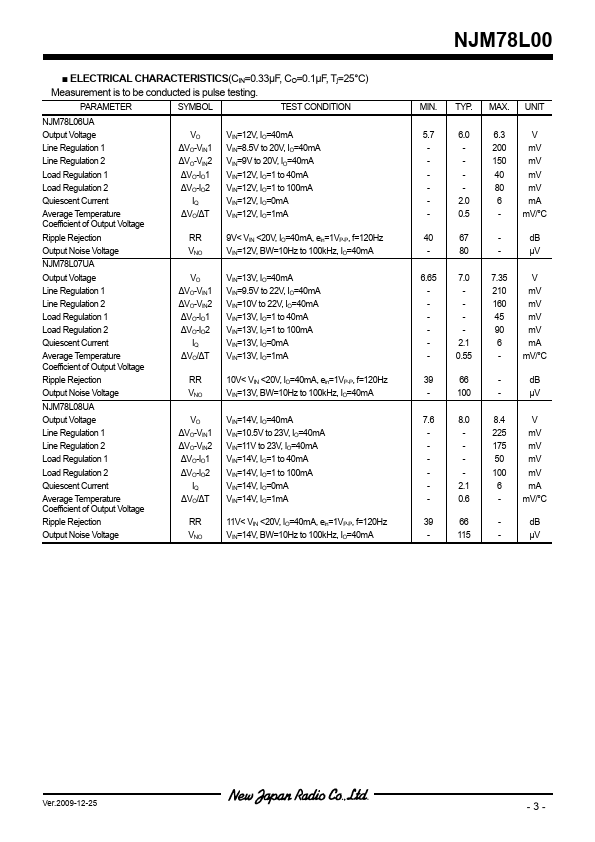

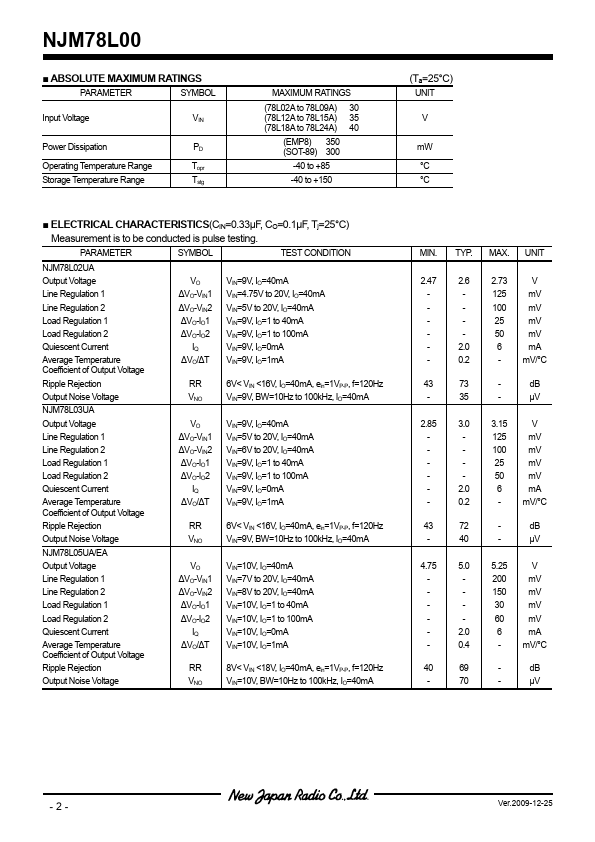

Additional preview pages of the 78L03A datasheet.

📁 Similar Datasheet

  • 78L03 - 3-TERMINAL POSITIVE VOLTAGE REGULATORS (HAOHAI)
  • 78L03 - Three-Terminal Voltage Regulator (Kexin)
  • 78L03 - voltage regulators (GMC)
  • 78L03 - 3-Terminal 100mA Positive Voltage Regulator (Taiwan Semiconductor)
  • 78L02A - Positive-Voltage Linear Regulators (Texas Instruments)
  • 78L02AC - Positive-Voltage Linear Regulators (Texas Instruments)
  • 78L05 - Positive voltage regulators (STMicroelectronics)
  • 78L05 - THREE TERMINAL POSITIVE VOLTAGE REGULATORS (KIA)
  • 78L05 - 3-Terminal positive voltage regulator (SEMTECH)
  • 78L05 - 100-mA Fixed Output Linear Regulator (Texas Instruments)
Other Datasheets by JRC
  • 78L02A - 3-TERMINAL POSITIVE VOLTAGE REGULATOR
  • 78L05A - 3-TERMINAL POSITIVE VOLTAGE REGULATOR
  • 78L06A - 3-TERMINAL POSITIVE VOLTAGE REGULATOR
  • 78L07A - 3-TERMINAL POSITIVE VOLTAGE REGULATOR
  • 78L08A - 3-TERMINAL POSITIVE VOLTAGE REGULATOR
  • 78L09A - 3-TERMINAL POSITIVE VOLTAGE REGULATOR
  • 78L10A - 3-TERMINAL POSITIVE VOLTAGE REGULATOR
  • 78L12A - 3-TERMINAL POSITIVE VOLTAGE REGULATOR

Full PDF Text Transcription

Click to expand full text
NJM78L00 3-TERMINAL POSITIVE VOLTAGE REGULATOR ■ GENERAL DESCRIPTION The NJM78L00 series of 3-Terminal Positive Voltage Regulators is constructed using the New JRC Planar epitaxial process. These regulators employ internal current-limiting and thermal-shutdown, making them essentially indestructible. If adequate heat sinking is provided, they can deliver up to 100mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators.
