78L18A, 78L02A 3-TERMINAL POSITIVE VOLTAGE REGULATOR

78L18A Description

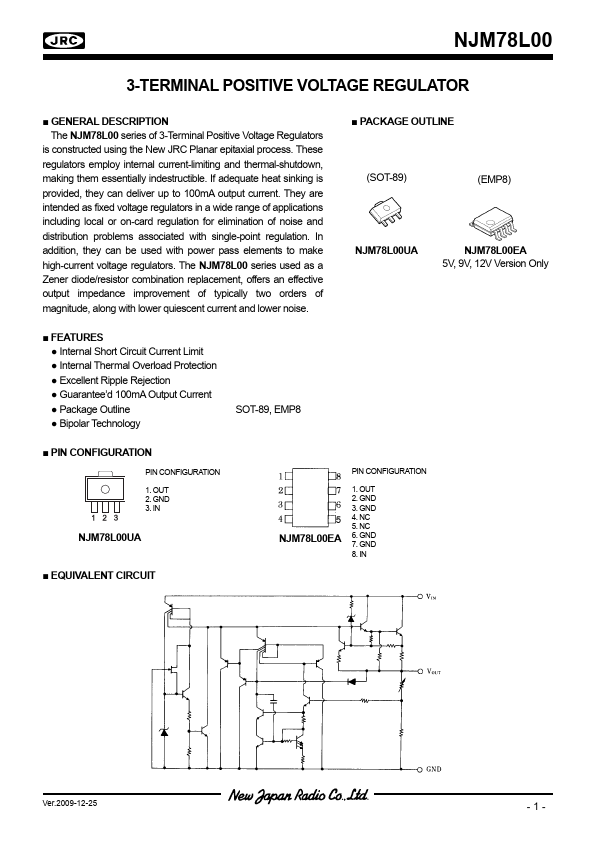

NJM78L00 3-TERMINAL POSITIVE VOLTAGE REGULATOR * GENERAL .
The NJM78L00 series of 3-Terminal Positive Voltage Regulators is constructed using the New JRC Planar epitaxial process.

78L18A Features

* Internal Short Circuit Current Limit
* Internal Thermal Overload Protection
* Excellent Ripple Rejection
* Guarantee’d 100mA Output Current
* Package Outline
* Bipolar Technology SOT-89, EMP8
* PIN CONFIGURATION PIN CONFIGURATION 1. OUT 2. GND 3. IN NJM78L00UA
* E

78L18A Applications

* including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The NJM78L00 series used as a Zener diode/resistor combination replacement

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 78L18A, 78L02A. Please refer to the document for exact specifications by model.

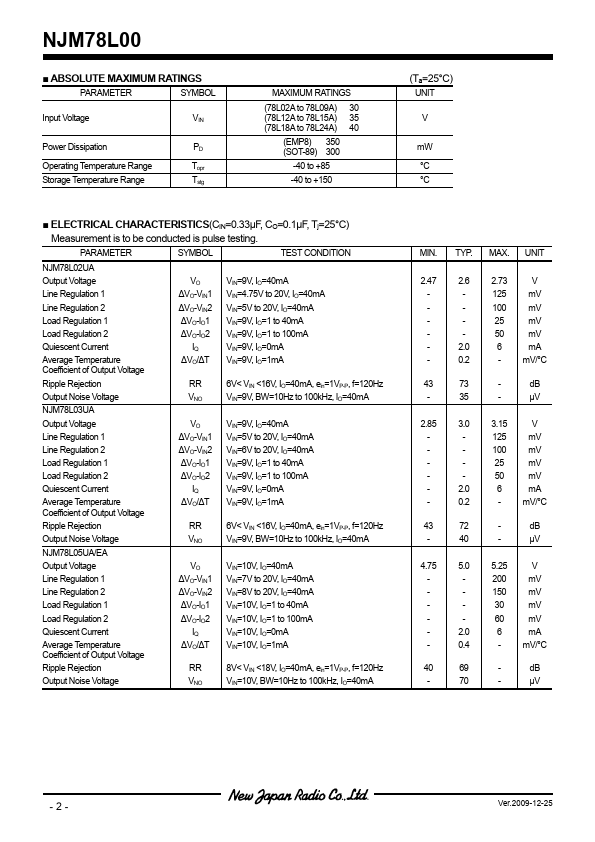

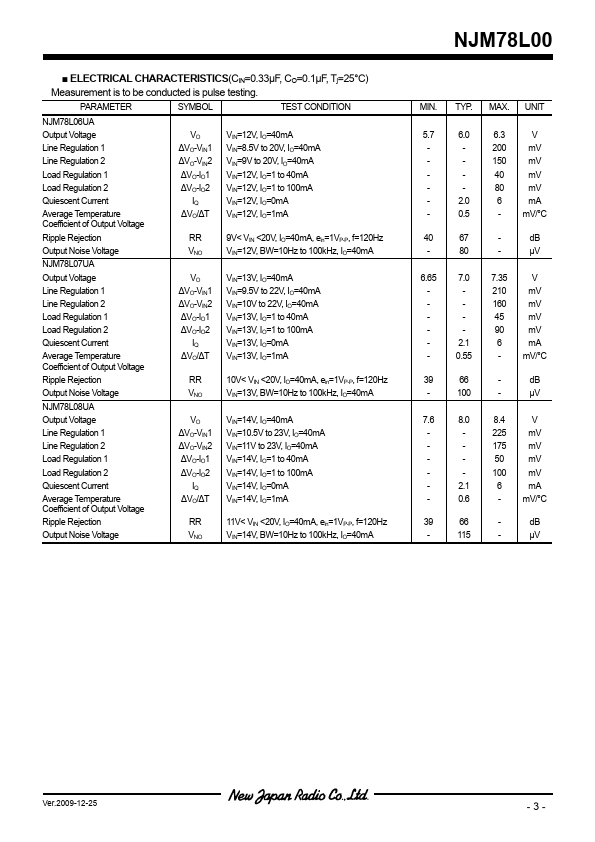

datasheet Preview Page 2 datasheet Preview Page 3
