JMB365, PCI Express to SATA II and PATA Host Controller

PCI Express to SATA II and PATA Host Controller Document 1 JMB365 Data Sheet 2 JMB365 Hardware Design Guide 3 JMB365 Application Schematic 4 JMB36X BIOS Programming Note Contact Information Department Sales Tech.

Support Email sales@jmicron.com fae@jmicron.com Product Brief Reversion 1.1 Copyrigh

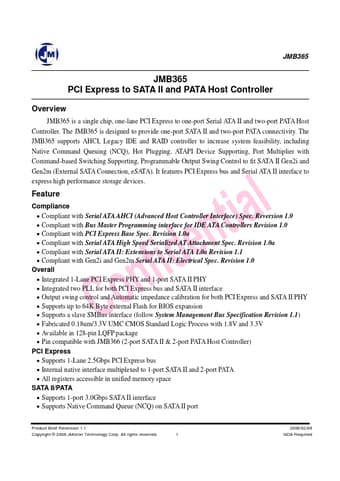

JMB365 JMB365 PCI Express to SATA II and PATA Host Controller Overview JMB365 is a single chip, one-lane PCI Express to one-port Serial ATA II and two-port PATA Host Controller.

The JMB365 is designed to provide one-port SATA II and two-port PATA connectivity.

The JMB365 supports AHCI, Legacy IDE and RAID controller to increase system feasibility, including Native Command Queuing (NCQ), Hot Plugging, ATAPI Device Supporting, Port Multiplier with Command-based Switching Supporting, Programmable

JMB365 Features

* PCI Express bus and Serial ATA II interface to express high performance storage devices. Feature Compliance

* Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Spec. Reversion 1.0

* Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.
