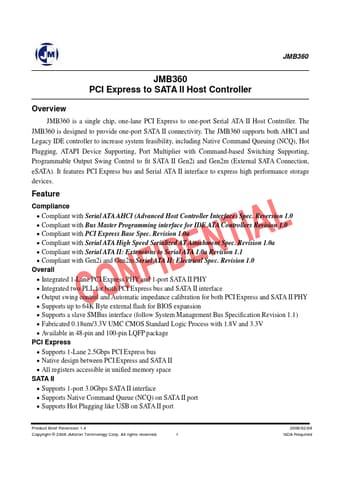

JMB360 JMB360 PCI Express to SATA II Host Controller Overview JMB360 is a single chip, one-lane PCI Express to one-port Serial ATA II Host Controller.

The JMB360 is designed to provide one-port SATA II connectivity.

The JMB360 supports both AHCI and Legacy IDE controller to increase system feasibility, including Native Command Queuing (NCQ), Hot Plugging, ATAPI Device Supporting, Port Multiplier with Command-based Switching Supporting, Programmable Output Swing Control to fit SATA II Gen2i and

JMB360 Features

* PCI Express bus and Serial ATA II interface to express high performance storage devices. Feature Compliance

* Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Spec. Reversion 1.0

* Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.
