GBU25K, GBU25A - Glass Passivated Single Phase Bridge Rectifiers

JGD

📥 Download Datasheet

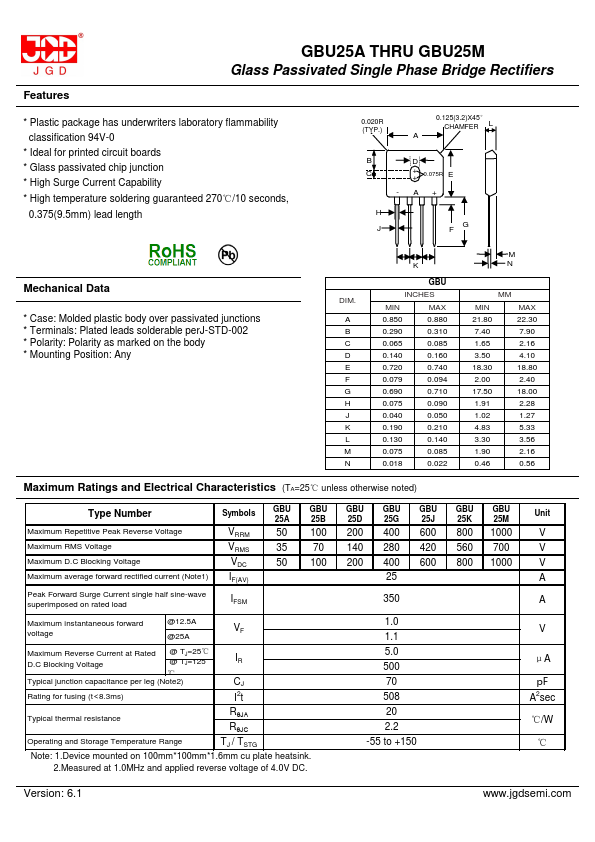

GBU25K Datasheet Preview — This datasheet PDF includes multiple part numbers: GBU25K, GBU25A. Please refer to the document for exact specifications by model.

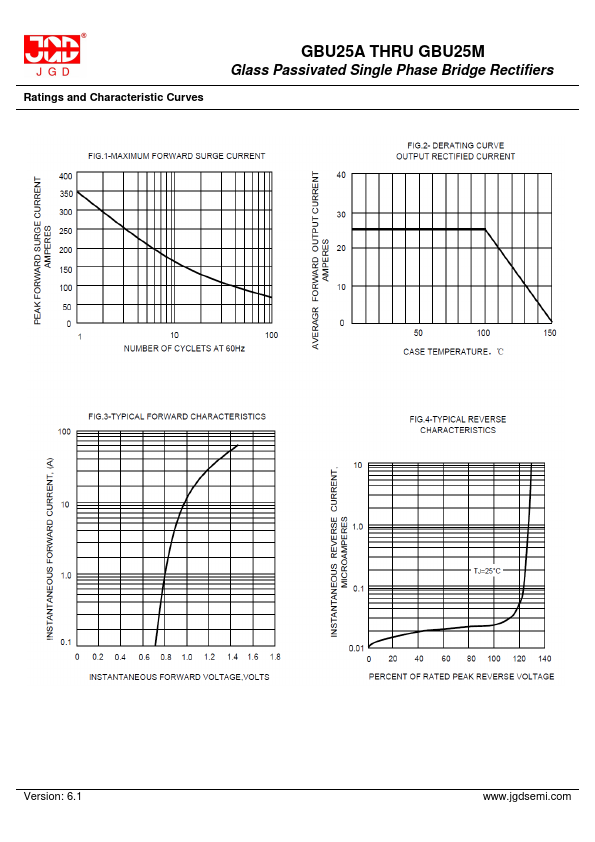

datasheet Preview Page 2

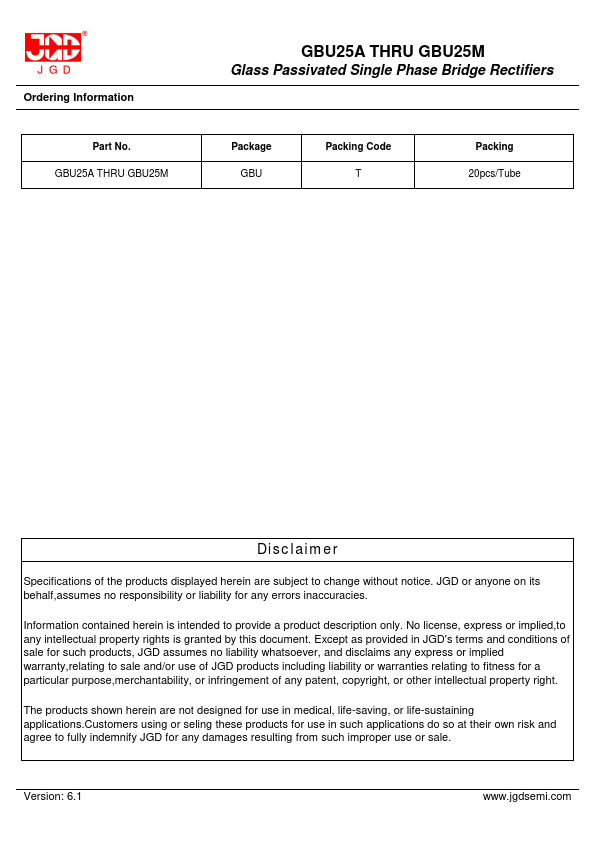

datasheet Preview Page 3

Datasheet Details

Part number	GBU25K, GBU25A
Manufacturer	JGD
File Size	282.05 KB
Description	Glass Passivated Single Phase Bridge Rectifiers
Datasheet	GBU25A-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: GBU25K, GBU25A. Please refer to the document for exact specifications by model.

GBU25K Product details

Description

only.

Features

Plastic package has underwriters laboratory flammability classification 94V-0.
Ideal for printed circuit boards.
Glass passivated chip junction.
High Surge Current Capability.
High temperature soldering guaranteed 270℃/10 seconds, 0.375(9.5mm) lead length 0.020R (TYP. ) 0.125(3.2)Х45°.
