GBU25A - Glass Passivated Single Phase Bridge Rectifiers

JGD

📥 Download Datasheet

GBU25A Datasheet Preview — Preview of GBU25A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GBU25A
Manufacturer	JGD
File Size	282.05 KB
Description	Glass Passivated Single Phase Bridge Rectifiers
Datasheet	GBU25A-JGD.pdf

GBU25A Product details

Description

only.

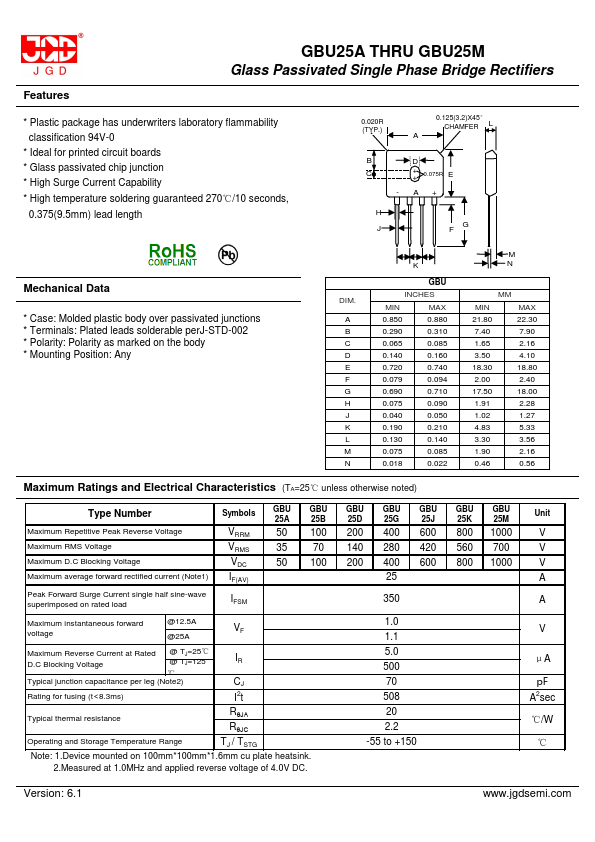

Features

Plastic package has underwriters laboratory flammability classification 94V-0.
Ideal for printed circuit boards.
Glass passivated chip junction.
High Surge Current Capability.
High temperature soldering guaranteed 270℃/10 seconds, 0.375(9.5mm) lead length 0.020R (TYP. ) 0.125(3.2)Х45°.
