DB151S - Glass Passivated Bridge Rectifiers

Product Overview

JGD

Part number	DB151S
Manufacturer	JGD
File Size	298.55 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	DB151S Datasheet
Note	This datasheet PDF includes multiple part numbers: DB151S, DB151. Please refer to the document for exact specifications by model.

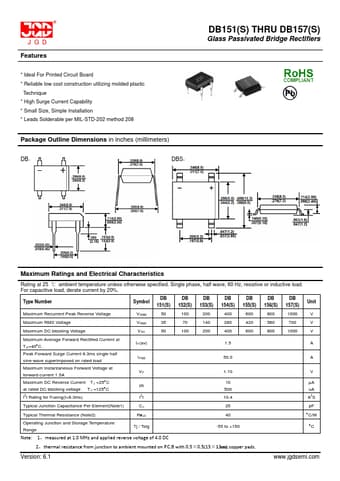

Additional preview pages of the DB151S datasheet.

Ideal For Printed Circuit Board.
Reliable low cost construction utilizing molded plastic Technique.
High Surge Current Capability.
Small Size, Simple Installation.
Leads Solderable per MIL-STD-202 method 208 Package Outline Dimensions in inches (millimeters) DB： DBS： DB151(S) THRU DB157(S) Glass Passivated Bridge Rectifiers Maximum Ratings and Electrical Characteristics Rating at 25 ℃ ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz,.
