1N4935L, 1N4933 - 1.0 Amp. Fast Recovery Rectifiers

Name: 1N4935L
SKU: 1N4935L-1285676

JGD

The 1N4935L by JGD is a 1.0 Amp. Fast Recovery Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	1N4935L, 1N4933
Manufacturer	JGD
File Size	366.54 KB
Description	1.0 Amp. Fast Recovery Rectifiers
Datasheet	1N4933-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: 1N4935L, 1N4933. Please refer to the document for exact specifications by model.

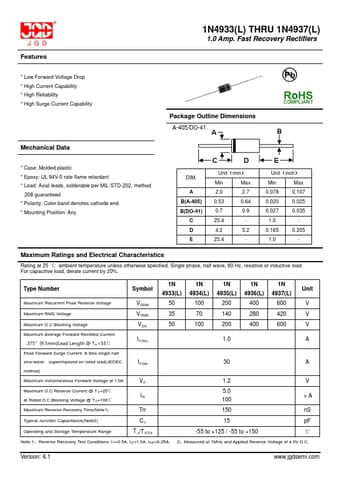

Additional preview pages of the 1N4935L datasheet.

1N4933(L) THRU 1N4937(L) 1.0 Amp. Fast Recovery Rectifiers.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability Mechanical Data Package Outline Dimensions A-405/DO-41：.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed.
Polarity: Color band denotes cathode end.
Mounting Position: Any DIM. A B(A-405) B(DO-41) C D E Unit（mm.
