Features

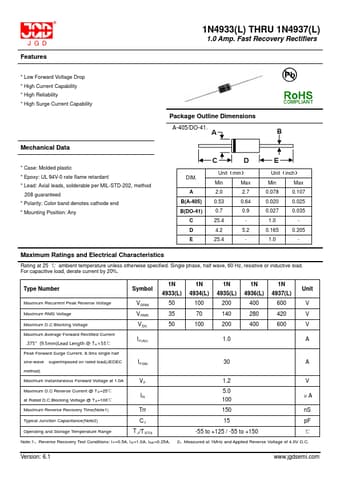

1N4933(L) THRU 1N4937(L)
1.0 Amp. Fast Recovery Rectifiers
* Low Forward Voltage Drop * High Current Capability * High Reliability * High Surge Current Capability
Mechanical Data
Package Outline Dimensions
A-405/DO-41：
* Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Axial leads, solderable per MIL-STD-202, method
208 guaranteed * Polarity: Color band denotes cathode end * Mounting Position: Any
DIM.
A B(A-405) B(DO-41)
C D E
Unit（mm） Min Max 2.0 2.7 0.53 0.64 0.7 0.9 25.4 4.2 5.2 25.4 -
Unit（inch）
Min Max
0.078
0.107
0.020
0.025
0.027
0.035
1.0 -
0.165
0.205
1.0 -
Maximum Ratings and Electrical Characteristics
Rating at 25 ℃ ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
