CJ7252KDW - N Channel + P Channel Power MOSFET

JCET

📥 Download Datasheet

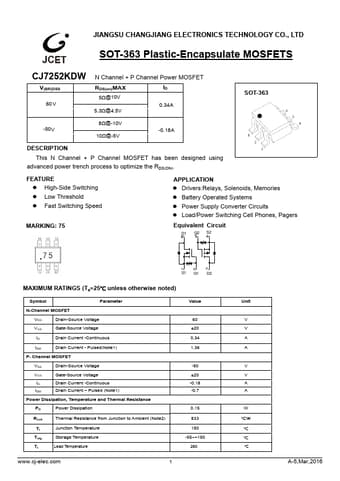

CJ7252KDW Datasheet Preview — Preview of CJ7252KDW PDF

Datasheet Details

Part number	CJ7252KDW
Manufacturer	JCET
File Size	1.34 MB
Description	N Channel + P Channel Power MOSFET
Datasheet	CJ7252KDW-JCET.pdf

CJ7252KDW Product details

Description

This N Channel + P Channel MOSFET has been designed using advanced power trench process to optimize the RDS(ON).FEATURE z High-Side Switching z Low Threshold z Fast Switching Speed MARKING: 75 APPLICATION z Drivers:Relays, Solenoids, Memories z Battery Operated Systems z Power Supply Converter Circuits z Load/Power Switching Cell Phones, Pagers Equivalent Circuit D1 G2 S2 6 54 1 2 3 S1 G1 D2 MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter N-Channel MOSFET VDS Dr
