CJ75C0S - 300mA CMOS Voltage Regulator

Download the CJ75C0S datasheet PDF. This datasheet also covers the CJ7533S variant, as both devices belong to the same 300ma cmos voltage regulator family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CJ7533S-JCET.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CJ75C0S
Manufacturer JCET
File Size 1.23 MB
Description 300mA CMOS Voltage Regulator
Datasheet download datasheet CJ75C0S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CJ7805 Three Terminal Positive Voltage Regulator Inchange Semiconductor
CJ7805 Three-terminal positive voltage regulator Jiangsu Changjiang Electronics Technology
CJ7805F Three-terminal positive voltage regulator Jiangsu Changjiang Electronics Technology
CJ7806 Three-terminal positive voltage regulator Jiangsu Changjiang Electronics Technology
CJ7806F Three-terminal positive voltage regulator Jiangsu Changjiang Electronics Technology

Other Datasheets by JCET

Part Number Description
CJ7533S 300mA CMOS Voltage Regulator
CJ7550S 300mA CMOS Voltage Regulator
CJ75L05 Three-terminal positive voltage regulator
CJ7203KDW N-channel MOSFET and Schottky Barrier Diode
CJ7252KDW N Channel + P Channel Power MOSFET

Full PDF Text Transcription

Click to expand full text

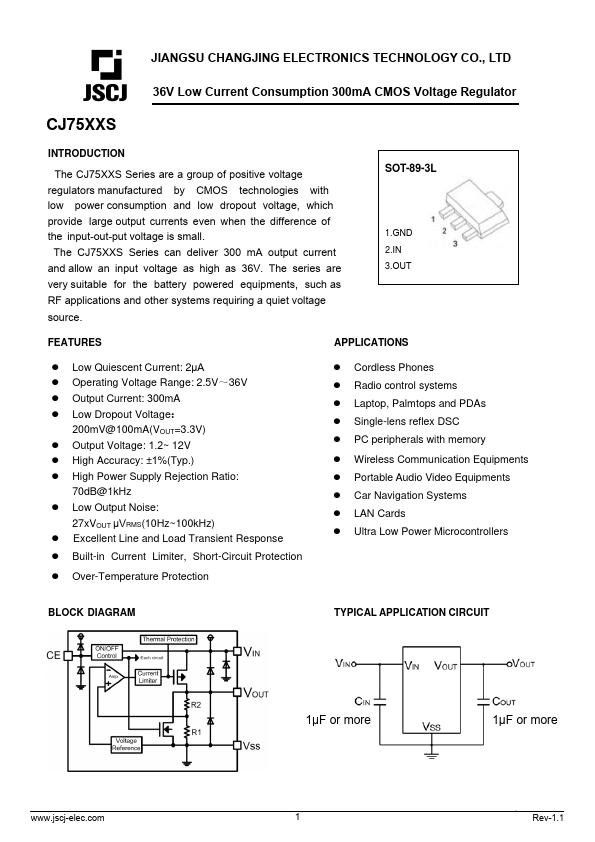

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD 36V Low Current Consumption 300mA CMOS Voltage Regulator CJ75XXS INTRODUCTION The CJ75XXS Series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-out-put voltage is small. The CJ75XXS Series can deliver 300 mA output current and allow an input voltage as high as 36V. The series are very suitable for the battery powered equipments, such as RF applications and other systems requiring a quiet voltage source. SOT-89-3L 1.GND 2.IN 3.OUT FEATURES APPLICATIONS  Low Quiescent Current: 2μA  Operating Voltage Range: 2.5V～36V  Output Current: 300mA  Low Dropout Voltage： 200mV@100mA(VOUT=3.
