ISP827-2 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

Download the ISP827-2 datasheet PDF (ISP817-1 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for phototransistor optically coupled isolators.

Description

The ISP817-3,-2,-1, ISP827-3,-2,-1, ISP8473,-2,-1 series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photo transistors in space efficient dual in line plastic packages.

Features

  • l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l Low input current 0.5mA IF l High Current Transfer Ratio (50% min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO (70V min) l All electrical parameters 100% tested l Custom electrical selections available.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ISP817-1_IsocomIncorporated.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ISP827-2
Manufacturer Isocom Incorporated
File Size 96.27 KB
Description PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
Datasheet download datasheet ISP827-2 Datasheet

📁 Similar Datasheet

  • ISP827 - Optocoupler / Phototransistor (ISOCOM)
  • ISP824 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS (ISOCOM COMPONENTS)
  • ISP825 - (ISP8x5) HIGH DENSITY MOUNTING PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS (ISOCOM COMPONENTS)
  • ISP825X - (ISP8x5) HIGH DENSITY MOUNTING PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS (ISOCOM COMPONENTS)
  • ISP80N08S2L - N-Channel MOSFET (INCHANGE)
  • ISP814 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS (ISOCOM COMPONENTS)
  • ISP815 - (ISP8x5) HIGH DENSITY MOUNTING PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS (ISOCOM COMPONENTS)
  • ISP815X - (ISP8x5) HIGH DENSITY MOUNTING PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS (ISOCOM COMPONENTS)
  • ISP817 - Optocoupler / Phototransistor (ISOCOM)
  • ISP844 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS (ISOCOM COMPONENTS)
Other Datasheets by Isocom Incorporated
  • ISP827-1 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
  • ISP827-3 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
  • ISP827X1 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
  • ISP827X2 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
  • ISP827X3 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
  • ISP817-1 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
  • ISP817-2 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
  • ISP817-3 - PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

Full PDF Text Transcription

Click to expand full text

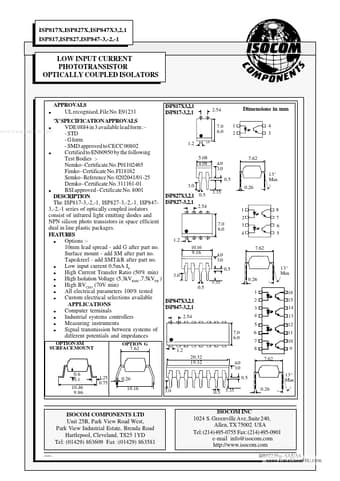

ISP817X,ISP827X,ISP847X3,2,1 ISP817,ISP827,ISP847-3,-2,-1 LOW INPUT CURRENT PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS l APPROVALS UL recognised, File No. E91231 ISP817X3,2,1 ISP817-3,2,1 2.54 7.0 6.0 1 2 Dimensions in mm 4 3 'X' SPECIFICATION APPROVALS VDE 0884 in 3 available lead form : www.DataSheet4U.com - STD - G form - SMD approved to CECC 00802 l Certified to EN60950 by the following Test Bodies :Nemko - Certificate No. P01102465 Fimko - Certificate No. FI18162 Semko - Reference No. 0202041/01-25 Demko - Certificate No. 311161-01 l BSI approved - Cetificate No.
