ISL736BEH, ISL705ARH 5.0V/3.3V u-Processor Supervisory Circuits

ISL736BEH Description

Datasheet ISL705xRH, ISL705xEH, ISL706xRH, ISL706xEH, ISL735xEH, ISL736xEH Radiation Hardened, 5.0V/3.3V µ-Processor Supervisory Circuits The devices.
3 3.

ISL736BEH Features

* ▪ Electrically screened to SMD 5962-11213 ▪ QML qualified per MIL-PRF-38535 requirements ▪ Precision supply voltage monitor
* 4.65V threshold in the ISL7x5AxH/BxH/CxH
* 3.08V threshold in the ISL7x6AxH/BxH/CxH ▪ 200ms (typ) reset pulse width
* Active high, active low, and ope

ISL736BEH Applications

* ▪ Supervisor for µ-processors, µ-controllers, FPGAs, and DSPs ▪ Critical power supply monitoring ▪ Reliable replacement of discrete solutions 5V Power Supply 165k  49.9k 1 MR 2 VDD 3 GND 4 PFI WDO 8 RST 7 WDI 6 PFO 5 VCC NMI RST µP I/O ISL7X5AxH 5V Supervisor Application with Overvolta

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL736BEH, ISL705ARH. Please refer to the document for exact specifications by model.

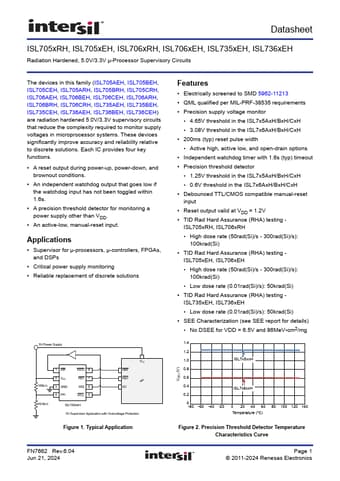

datasheet Preview Page 2 datasheet Preview Page 3
